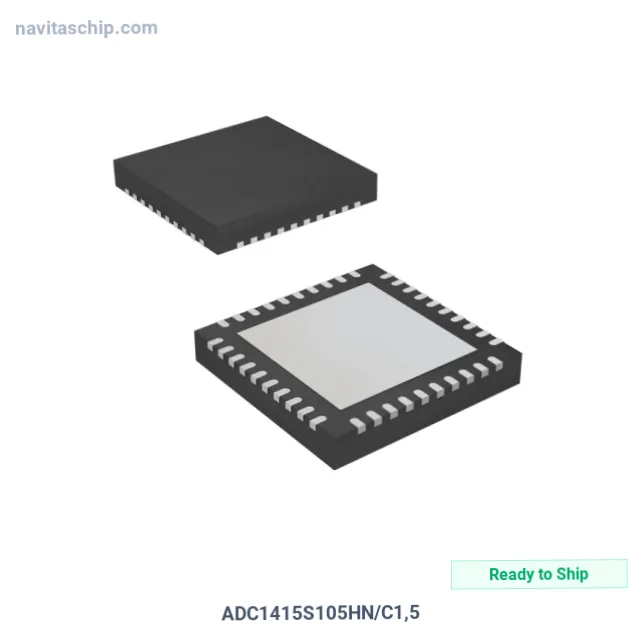

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADC1415S105HN/C1,5 |
| Manufacturer | NXP Semiconductors |
| NavitasChip Part Number | NAVI-11530598 |
| Description | IC ADC 14BIT PIPELINED 40HVQFN |
| Spec | 40-VFQFN Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | NXP Semiconductors |
| Package | Tray |
| Product Status | Obsolete |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 105M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | LVDS - Parallel, Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.85V ~ 3.4V, 5V |
| Voltage - Supply, Digital | 2.85V ~ 3.4V, 5V |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 40-HVQFN (6x6) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP Semiconductors ADC1415S105HN/C1,5 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADC1415S105HN/C1,5 is an Analog-to-Digital Converter (ADC) manufactured by NXP Semiconductors (NXP). Integrated Circuit Analog-To-Digital Converter 14bit Pipelined 40hvqfn, housed in a compact 40-HVQFN (6x6) package.
