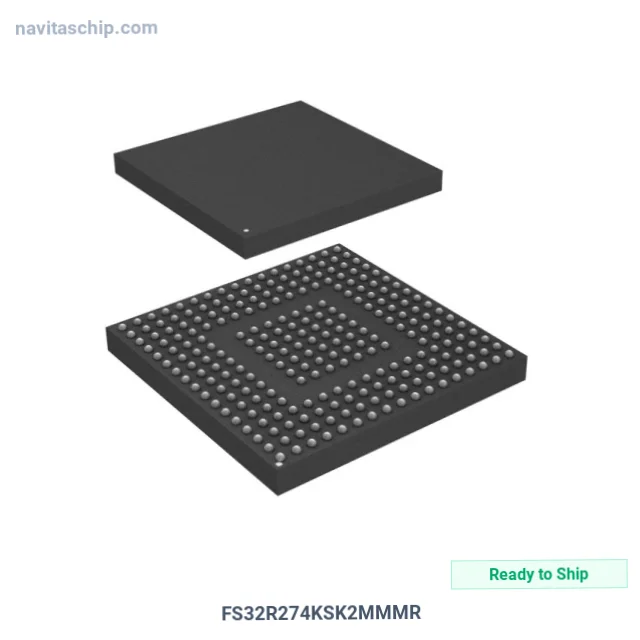

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | FS32R274KSK2MMMR |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-9448198 |
| Description | IC MCU 32BIT 2MB FLASH 257MAPBGA |
| Spec | 257-LFBGA |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Core Processor | e200z4, e200z7 (2) |
| Core Size | 32-Bit Tri-Core |
| Speed | 180MHz, 240MHz |
| Connectivity | CANbus, Ethernet, FlexRay, I2C, LINbus, SPI, ZipWire |
| Peripherals | POR, PWM, WDT |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| RAM Size | 1.5M x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.19V ~ 5.5V |
| Data Converters | A/D 16x12b SAR, 4x12 Sigma; D/A 1x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 257-LFBGA (14x14) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. FS32R274KSK2MMMR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The FS32R274KSK2MMMR is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 32bit 2mb Flash Memory in 257-Pin BGA Package, housed in a compact 257-LFBGA (14x14) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 257-LFBGA
- Device Package: 257-LFBGA (14x14)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
