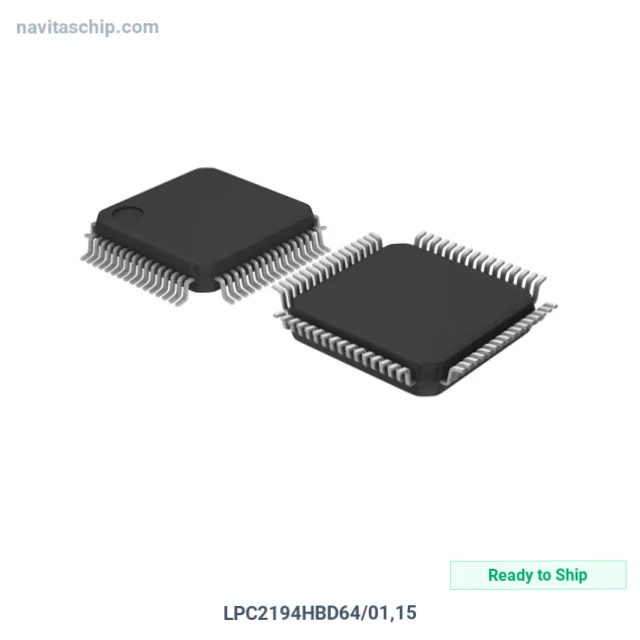

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LPC2194HBD64/01,15 |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-1692802 |
| Description | IC MCU 16/32B 256KB FLASH 64LQFP |
| Spec | 64-LQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Tray |
| Product Status | Obsolete |
| Core Processor | ARM7® |
| Core Size | 16/32-Bit |
| Speed | 60MHz |
| Connectivity | CANbus, I2C, Microwire, SPI, SSI, SSP, UART/USART |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 46 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 3.6V |
| Data Converters | A/D 4x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LQFP (10x10) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. LPC2194HBD64/01,15 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LPC2194HBD64/01,15 is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 16/32b 256kb Flash Memory in 64-Pin LQFP Package, housed in a compact 64-LQFP (10x10) package.
Facing EOL (End of Life) notices? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 64-LQFP
- Device Package: 64-LQFP (10x10)
- RoHS Compliant
Applications
Commonly utilized in:
- embedded systems
- professional equipment
- wearable devices
- industrial control
- smart home
Why Choose NavitasChip for LPC2194HBD64/01,15?
NavitasChip offers global surplus sourcing network for the LPC2194HBD64/01,15 and thousands of other electronic components.
- Availability: Available Now
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
LPC2194HBD64/01,15 sourced and shipped via our Asia-Pacific distribution network.
LPC2194HBD64/01,15 - Request a quote today.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
