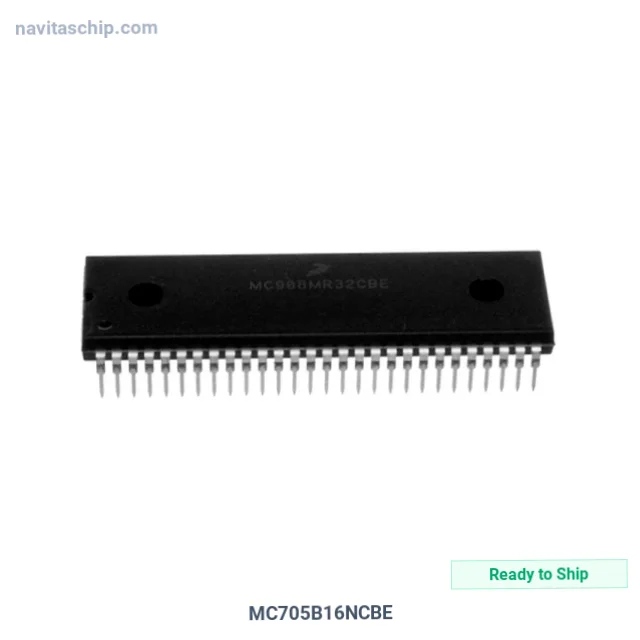

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MC705B16NCBE |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-1619678 |
| Description | IC MCU 8BIT 15KB OTP 56PSDIP |
| Spec | 56-SDIP (0.600\ |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Tube |
| Product Status | Obsolete |
| Core Processor | HC05 |
| Core Size | 8-Bit |
| Speed | 2.1MHz |
| Connectivity | SCI |
| Peripherals | POR, WDT |
| Number of I/O | 32 |
| Program Memory Size | 15KB (15K x 8) |
| Program Memory Type | OTP |
| EEPROM Size | 256 x 8 |
| RAM Size | 352 x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Data Converters | A/D 8x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 56-PSDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. MC705B16NCBE Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MC705B16NCBE is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 8bit 15kb Overtemperature Protection 56psdip, housed in a compact 56-PSDIP package. Extended temperature range version (-40°C to +85°C).
In today's market, challenging Target Price (TP) requirements can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Through Hole
- Package: 56-SDIP (0.600\
- Device Package: 56-PSDIP
- RoHS Compliant
Applications
Ideal solution for:
- embedded systems
- IoT devices
- professional equipment
- smart home
Why Choose NavitasChip for MC705B16NCBE?
NavitasChip offers cost-saving procurement for the MC705B16NCBE and thousands of other electronic components.
- Availability: Same-day Shipping Options
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Flexible shipping arrangements for MC705B16NCBE with regional warehouse support.
MC705B16NCBE - Request a quote today.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
