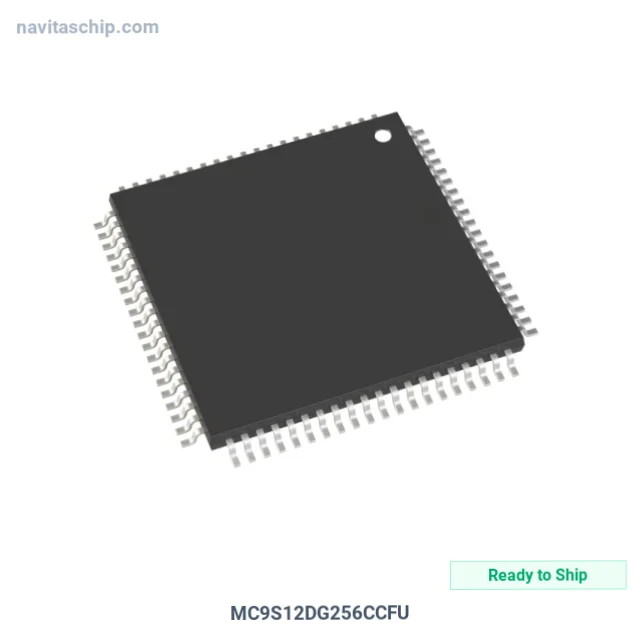

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MC9S12DG256CCFU |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-559952 |
| Description | IC MCU 16BIT 256KB FLASH 80QFP |
| Spec | 80-QFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Tray |
| Product Status | Obsolete |
| Core Processor | HCS12 |
| Core Size | 16-Bit |
| Speed | 25MHz |
| Connectivity | CANbus, I2C, SCI, SPI |
| Peripherals | PWM, WDT |
| Number of I/O | 59 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 12K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.35V ~ 5.25V |
| Data Converters | A/D 16x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 80-QFP (14x14) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. MC9S12DG256CCFU Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MC9S12DG256CCFU is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 16bit 256kb Flash Memory in 80-Pin QFP Package, housed in a compact 80-QFP (14x14) package.
Struggling with quarterly cost-down targets? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 80-QFP
- Device Package: 80-QFP (14x14)
Applications
Designed for:
- embedded systems
- industrial automation
- consumer electronics
- professional equipment
- wearable devices
Why Choose NavitasChip for MC9S12DG256CCFU?
NavitasChip offers cost-effective alternative to authorized distributors for the MC9S12DG256CCFU and thousands of other electronic components.
- Availability: In Inventory
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
MC9S12DG256CCFU sourced and shipped via our Asia-Pacific distribution network.
MC9S12DG256CCFU - Check our competitive price now.
