MC9S12XA256CAAR NXP USA Inc.

IC MCU 16BIT 256KB FLASH 80QFP

In stock: 2,324 pcs · Price on request (RFQ)

In Stock RoHS
MC9S12XA256CAAR

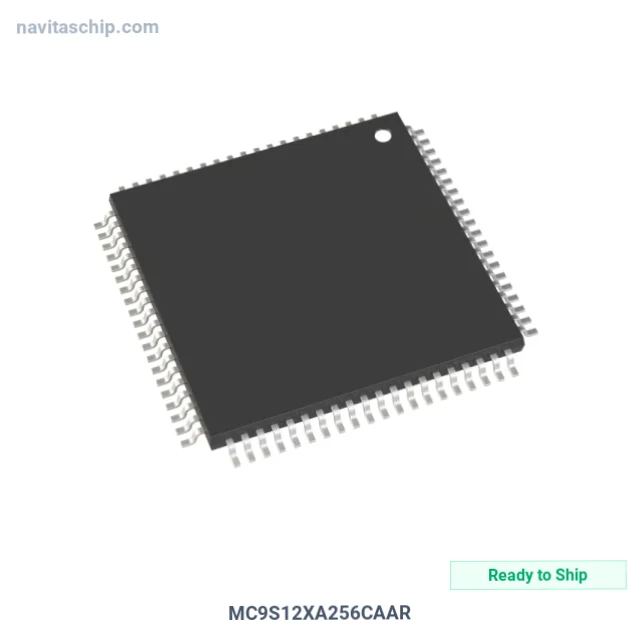

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.

Manufacturer Product Number MC9S12XA256CAAR
Manufacturer NXP USA Inc.
NavitasChip Part Number N96118075
Description IC MCU 16BIT 256KB FLASH 80QFP
Spec 80-QFP
Package Tape & Reel (TR)
Datasheet Datasheet

Product Attributes

Type Description
Category Microcontrollers
Manufacturer NXP USA Inc.
Package Tape & Reel (TR)
Product Status Obsolete
Core Processor HCS12X
Core Size 16-Bit
Speed 80MHz
Connectivity EBI/EMI, I2C, IrDA, LINbus, SCI, SPI
Peripherals LVD, POR, PWM, WDT
Number of I/O 59
Program Memory Size 256KB (256K x 8)
Program Memory Type FLASH
EEPROM Size 4K x 8
RAM Size 16K x 8
Voltage - Supply (Vcc/Vdd) 2.35V ~ 5.5V
Data Converters A/D 8x10b
Oscillator Type External
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Supplier Device Package 80-QFP (14x14)

Documents & Media

Resource Type Link
Datasheet NXP USA Inc. MC9S12XA256CAAR Datasheet
Product Image View Large Image

Environmental Compliance

Attribute Description
RoHS Status RoHS Compliant
REACH Status REACH Unaffected

Product Description

The MC9S12XA256CAAR is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 16bit 256kb Flash Memory in 80-Pin QFP Package, housed in a compact 80-QFP (14x14) package.

Key Technical Specifications

  • Operating Temperature: -40°C ~ 85°C (TA)
  • Mounting: Surface Mount
  • Package: 80-QFP
  • Device Package: 80-QFP (14x14)
  • RoHS Compliant

Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.

Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.

Spot Buy Note

Stock quantities change frequently. For large orders (1,000+ units), please contact us to verify stock and get custom pricing.
