MC9S12XHZ256VAGR NXP USA Inc.

IC MCU 16BIT 256KB FLASH 144LQFP

In stock: 469 pcs · Price on request (RFQ)

In Stock RoHS
MC9S12XHZ256VAGR

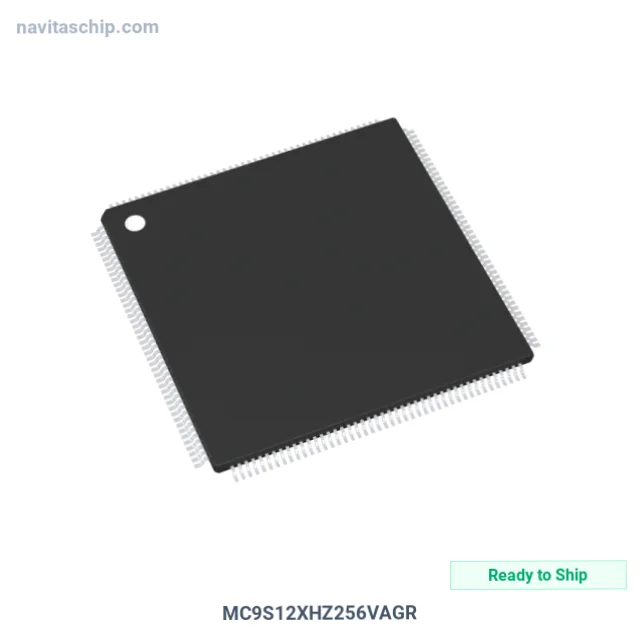

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.

Manufacturer Product Number MC9S12XHZ256VAGR
Manufacturer NXP USA Inc.
NavitasChip Part Number N96114323
Description IC MCU 16BIT 256KB FLASH 144LQFP
Spec 144-LQFP
Package Tape & Reel (TR)
Datasheet Datasheet

Product Attributes

Type Description
Category Microcontrollers
Manufacturer NXP USA Inc.
Package Tape & Reel (TR)
Product Status Obsolete
Core Processor HCS12X
Core Size 16-Bit
Speed 80MHz
Connectivity CANbus, EBI/EMI, I2C, LINbus, SCI, SPI
Peripherals LCD, Motor control PWM, POR, PWM, WDT
Number of I/O 117
Program Memory Size 256KB (256K x 8)
Program Memory Type FLASH
EEPROM Size 4K x 8
RAM Size 16K x 8
Voltage - Supply (Vcc/Vdd) 2.35V ~ 5.5V
Data Converters A/D 16x8/10b
Oscillator Type External
Operating Temperature -40°C ~ 105°C (TA)
Mounting Type Surface Mount
Supplier Device Package 144-LQFP (20x20)

Documents & Media

Resource Type Link
Datasheet NXP USA Inc. MC9S12XHZ256VAGR Datasheet
Product Image View Large Image

Environmental Compliance

Attribute Description
RoHS Status RoHS Compliant
REACH Status REACH Unaffected

Product Description

The MC9S12XHZ256VAGR is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 16bit 256kb Flash Memory in 144-Pin LQFP Package, housed in a compact 144-LQFP (20x20) package.

Key Technical Specifications

  • Operating Temperature: -40°C ~ 105°C (TA)
  • Mounting: Surface Mount
  • Package: 144-LQFP
  • Device Package: 144-LQFP (20x20)
  • RoHS Compliant

Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.

Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.

Spot Buy Note

Stock quantities change frequently. For large orders (1,000+ units), please contact us to verify stock and get custom pricing.
