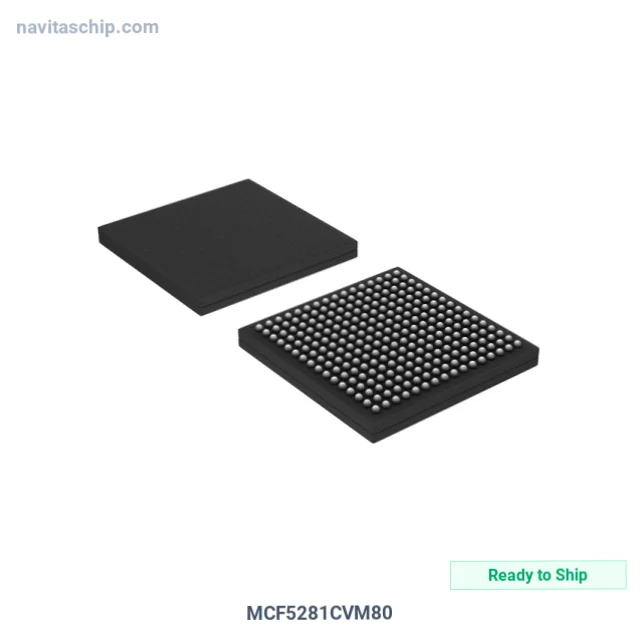

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MCF5281CVM80 |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-954792 |
| Description | IC MCU 32B 256KB FLASH 256MAPBGA |
| Spec | 256-LBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Tray |
| Product Status | Not For New Designs |
| Core Processor | Coldfire V2 |
| Core Size | 32-Bit |
| Speed | 80MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, SPI, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 142 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Data Converters | A/D 8x10b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 256-MAPBGA (17x17) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. MCF5281CVM80 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MCF5281CVM80 is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 32b 256kb Flash Memory in 256-Pin BGA Package, housed in a compact 256-MAPBGA (17x17) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 256-LBGA
- Device Package: 256-MAPBGA (17x17)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
