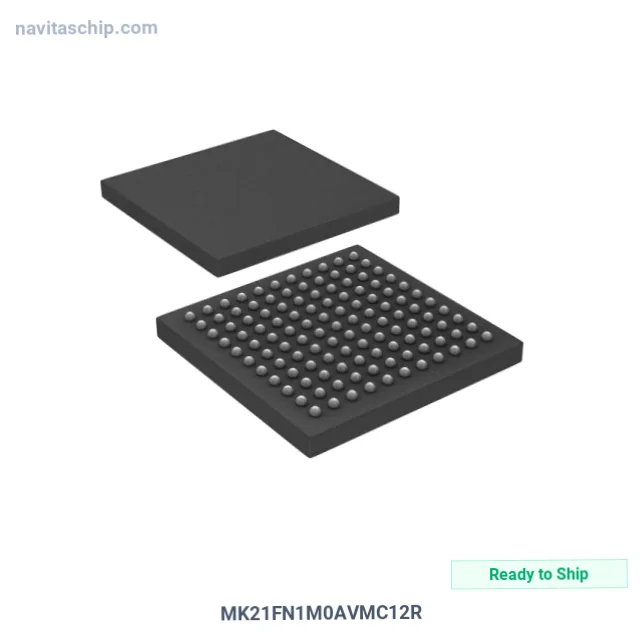

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MK21FN1M0AVMC12R |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-7646305 |
| Description | IC MCU 32BIT 1MB FLASH 121MAPBGA |
| Spec | 121-LFBGA |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit |
| Speed | 120MHz |
| Connectivity | CANbus, I2C, IrDA, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I2S, LVD, POR, PWM, WDT |
| Number of I/O | 81 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 40x16b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 121-MAPBGA (8x8) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. MK21FN1M0AVMC12R Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MK21FN1M0AVMC12R is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 32bit 1mb Flash Memory in 121-Pin BGA Package, housed in a compact 121-MAPBGA (8x8) package.
Don't let production line down slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 121-LFBGA
- Device Package: 121-MAPBGA (8x8)
- RoHS Compliant
Applications
Widely adopted for:
- professional equipment
- wearable devices
- industrial control
- smart home
Why Choose NavitasChip for MK21FN1M0AVMC12R?
NavitasChip offers cost-effective alternative to authorized distributors for the MK21FN1M0AVMC12R and thousands of other electronic components.
- Availability: Same-day Shipping Options
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
MK21FN1M0AVMC12R sourced and shipped via our Asia-Pacific distribution network.
MK21FN1M0AVMC12R - Request a quote today.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
