MPC564MVR56R2 NXP USA Inc.

IC MCU 32BIT 512KB FLASH 388PBGA

In stock: 1,302 pcs · Price on request (RFQ)

In Stock RoHS
MPC564MVR56R2

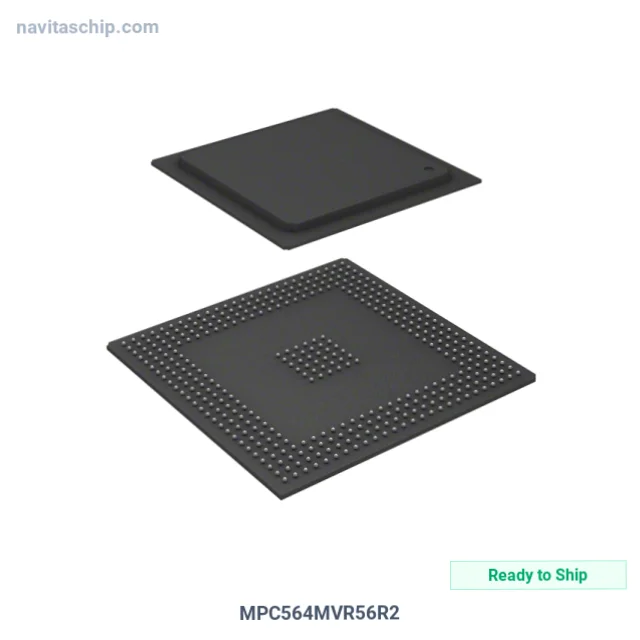

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.

Manufacturer Product Number MPC564MVR56R2
Manufacturer NXP USA Inc.
NavitasChip Part Number N96121085
Description IC MCU 32BIT 512KB FLASH 388PBGA
Spec 388-BBGA
Package Tape & Reel (TR)
Datasheet Datasheet

Product Attributes

Type Description
Category Microcontrollers
Manufacturer NXP USA Inc.
Package Tape & Reel (TR)
Product Status Obsolete
Core Processor PowerPC
Core Size 32-Bit
Speed 56MHz
Connectivity CANbus, EBI/EMI, SCI, SPI, UART/USART
Peripherals POR, PWM, WDT
Number of I/O 56
Program Memory Size 512KB (512K x 8)
Program Memory Type FLASH
RAM Size 32K x 8
Voltage - Supply (Vcc/Vdd) 2.5V ~ 2.7V
Data Converters A/D 32x10b
Oscillator Type External
Operating Temperature -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Supplier Device Package 388-PBGA (27x27)

Documents & Media

Resource Type Link
Datasheet NXP USA Inc. MPC564MVR56R2 Datasheet
Product Image View Large Image

Environmental Compliance

Attribute Description
RoHS Status RoHS Compliant
REACH Status REACH Unaffected

Product Description

The MPC564MVR56R2 is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 32bit 512kb Flash Memory in 388-Pin BGA Package, housed in a compact 388-PBGA (27x27) package.

Key Technical Specifications

  • Operating Temperature: -40°C ~ 125°C (TA)
  • Mounting: Surface Mount
  • Package: 388-BBGA
  • Device Package: 388-PBGA (27x27)
  • RoHS Compliant

Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.

Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.

Spot Buy Note

Stock quantities change frequently. For large orders (1,000+ units), please contact us to verify stock and get custom pricing.
