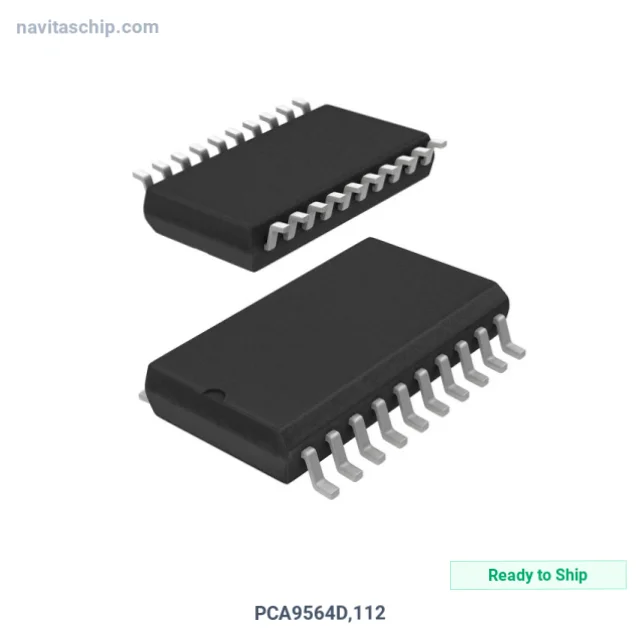

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PCA9564D,112 |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-13167086 |
| Description | IC CONTROLLER PARALLEL INTERFACE |
| Spec | 20-SOIC (0.295", 7.50mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | NXP USA Inc. |
| Package | Bulk |
| Product Status | Obsolete |
| Protocol | I2C |
| Function | Controller |
| Interface | Parallel |
| Voltage - Supply | 2.3V ~ 3.6V |
| Current - Supply | 6mA |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 20-SO |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. PCA9564D,112 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PCA9564D,112 is an Interface Controller IC manufactured by NXP USA Inc. (NXP). Integrated Circuit Controller Parallel Interface, housed in a compact 20-SO package, with 2.3V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.3V ~ 3.6V
- Interface: Parallel
- Operating Temperature: -40°C ~ 85°C
- Package: 20-SOIC (0.295", 7.50mm Width)
- Device Package: 20-SO
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
