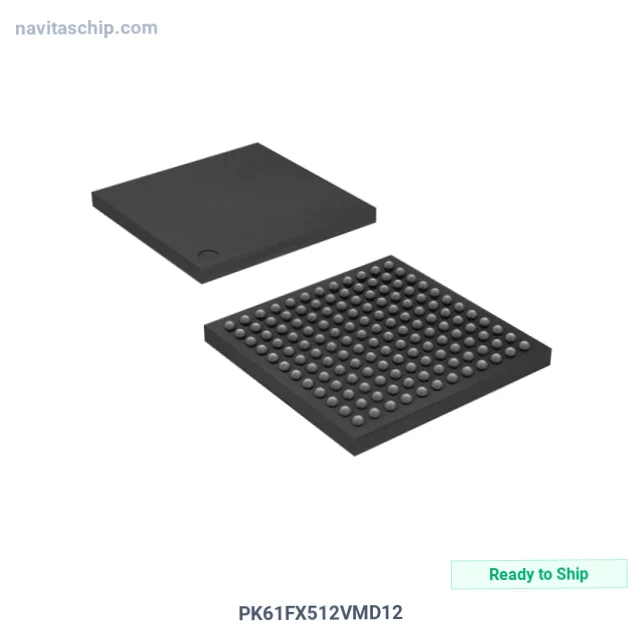

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PK61FX512VMD12 |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-2817653 |
| Description | IC MCU 32B 512KB FLASH 144MAPBGA |
| Spec | 144-LBGA |
| Package | Box |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Box |
| Product Status | Obsolete |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit |
| Speed | 120MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, SD, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I2S, LVD, POR, PWM, WDT |
| Number of I/O | 95 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 16K x 8 |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 53x16b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-MAPBGA (13x13) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. PK61FX512VMD12 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PK61FX512VMD12 is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 32b 512kb Flash Memory in 144-Pin BGA Package, housed in a compact 144-MAPBGA (13x13) package.
Facing annual BOM cost reduction pressure? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 144-LBGA
- Device Package: 144-MAPBGA (13x13)
- RoHS Compliant
Applications
Designed for:
- embedded systems
- IoT devices
- industrial automation
- professional equipment
- industrial control
Why Choose NavitasChip for PK61FX512VMD12?
NavitasChip offers cost-effective alternative to authorized distributors for the PK61FX512VMD12 and thousands of other electronic components.
- Availability: In Inventory
- Packaging: Available in factory Box or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Global supply network for PK61FX512VMD12 with distribution hubs in Hong Kong, Singapore, and Shenzhen.
PK61FX512VMD12 - Request a quote today.
