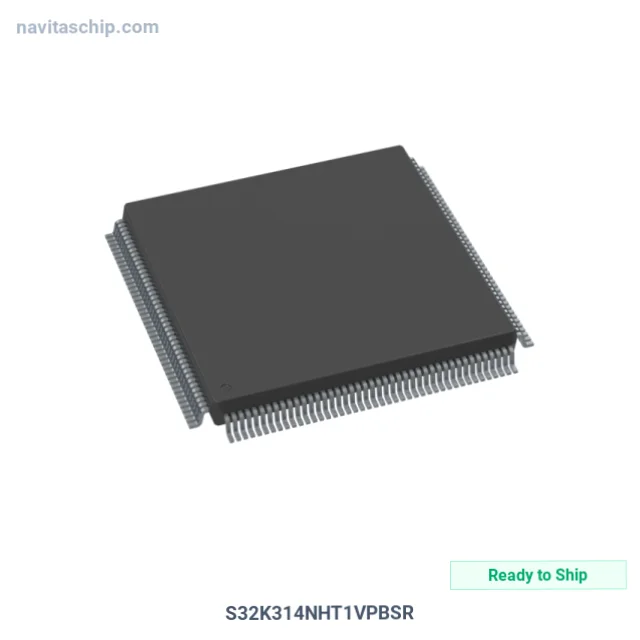

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | S32K314NHT1VPBSR |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-18712609 |
| Description | S32K314 ARM CORTEX-M7, 160 MHZ, |
| Spec | 172-QFP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit |
| Speed | 160MHz |
| Connectivity | CANbus, Ethernet, FlexIO, I2C, I3C, LIN, QSPI, SAI, SPI, UART/USART |
| Peripherals | DMA, I2S, Serial Audio, WDT |
| Number of I/O | 218 |
| Program Memory Size | 4MB (4M x 8) |
| Program Memory Type | FLASH |
| RAM Size | 512K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 24x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 172-QFP (16x16) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. S32K314NHT1VPBSR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The S32K314NHT1VPBSR is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). S32k314 Arm Cortex-M7, housed in a compact 172-QFP (16x16) package.
Don't let production line down slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C
- Mounting: Surface Mount
- Package: 172-QFP
- Device Package: 172-QFP (16x16)
- RoHS Compliant
Applications
Ideal solution for:
- consumer electronics
- wearable devices
- industrial control
Why Choose NavitasChip for S32K314NHT1VPBSR?
NavitasChip offers obsolete part procurement when authorized distributors discontinue support for the S32K314NHT1VPBSR and thousands of other electronic components.
- Availability: Same-day Shipping Options
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
As an independent distributor, we offer S32K314NHT1VPBSR with flexible routing options.
S32K314NHT1VPBSR - Upload your BOM for fast pricing.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
