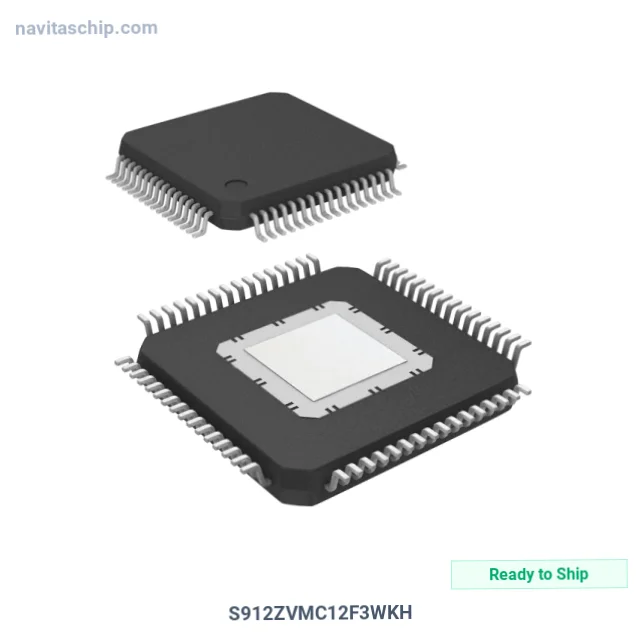

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | S912ZVMC12F3WKH |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-7647017 |
| Description | IC MCU 16BIT 128KB FLASH 64LQFP |
| Spec | 64-LQFP Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Tray |
| Product Status | Active |
| Core Processor | S12Z |
| Core Size | 16-Bit |
| Speed | 50MHz |
| Connectivity | CANbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 31 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3.5V ~ 40V |
| Data Converters | A/D 9x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 150°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-HLQFP (10x10) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. S912ZVMC12F3WKH Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The S912ZVMC12F3WKH is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 16bit 128kb Flash Memory in 64-Pin LQFP Package, housed in a compact 64-HLQFP (10x10) package.
Don't let challenging Target Price (TP) requirements slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Operating Temperature: -40°C ~ 150°C (TA)
- Mounting: Surface Mount
- Package: 64-LQFP Exposed Pad
- Device Package: 64-HLQFP (10x10)
- RoHS Compliant
Applications
Commonly utilized in:
- embedded systems
- IoT devices
- industrial automation
- industrial control
Why Choose NavitasChip for S912ZVMC12F3WKH?
NavitasChip offers cost-effective alternative to authorized distributors for the S912ZVMC12F3WKH and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
S912ZVMC12F3WKH sourced and shipped via our Asia-Pacific distribution network.
S912ZVMC12F3WKH - Contact our sales team.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
