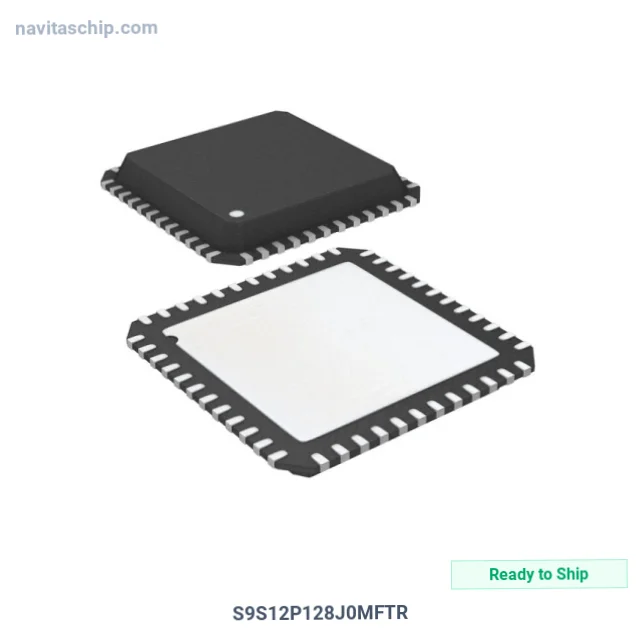

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | S9S12P128J0MFTR |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-3742783 |
| Description | IC MCU 16BIT 128KB FLASH 48QFN |
| Spec | 48-TFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Core Processor | HCS12 |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Connectivity | CANbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 34 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.72V ~ 5.5V |
| Data Converters | A/D 10x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-QFN-EP (7x7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. S9S12P128J0MFTR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The S9S12P128J0MFTR is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 16bit 128kb Flash Memory in 48-Pin QFN Package, housed in a compact 48-QFN-EP (7x7) package. Supplied in Tape and Reel packaging for automated assembly.
Facing challenging Target Price (TP) requirements? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 48-TFQFN Exposed Pad
- Device Package: 48-QFN-EP (7x7)
- RoHS Compliant
Applications
Essential component for:
- embedded systems
- industrial automation
- professional equipment
- industrial control
Why Choose NavitasChip for S9S12P128J0MFTR?
NavitasChip offers cost-effective alternative to authorized distributors for the S9S12P128J0MFTR and thousands of other electronic components.
- Availability: Available Now
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Fast S9S12P128J0MFTR delivery to Malaysia and Vietnam via DHL, FedEx, and UPS.
S9S12P128J0MFTR - Check our competitive price now.
