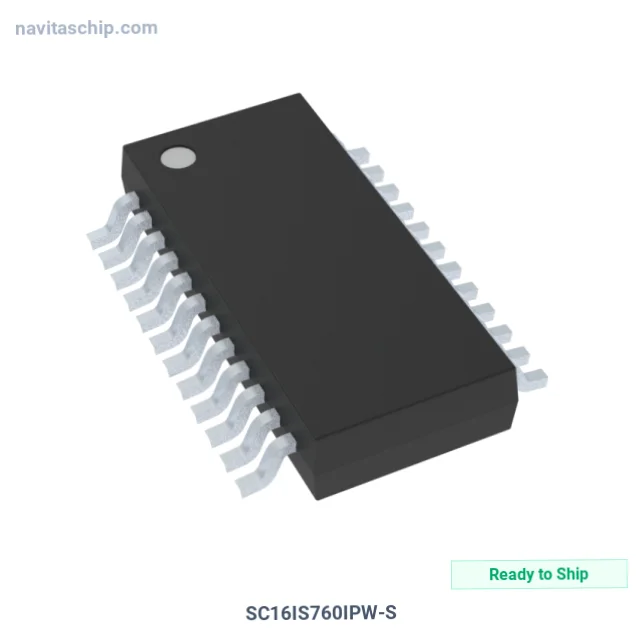

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | SC16IS760IPW-S |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-946248 |
| Description | IC UART I2C/SPI 24-TSSOP |
| Spec | 24-TSSOP (0.173", 4.40mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | NXP USA Inc. |
| Package | Tube |
| Product Status | Discontinued at |
| Protocol | RS232, RS485 |
| Function | Controller |
| Interface | I2C, SPI, UART |
| Voltage - Supply | 2.5V, 3.3V |
| Current - Supply | 6mA |
| Operating Temperature | -40°C ~ 95°C |
| Supplier Device Package | 24-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. SC16IS760IPW-S Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The SC16IS760IPW-S is an Interface Controller IC manufactured by NXP USA Inc. (NXP). Integrated Circuit UART I2C/spi in 24-Pin TSSOP Package, housed in a compact 24-TSSOP package, with 2.5V, 3.3V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.5V, 3.3V
- Interface: I2C, SPI, UART
- Operating Temperature: -40°C ~ 95°C
- Package: 24-TSSOP (0.173", 4.40mm Width)
- Device Package: 24-TSSOP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
