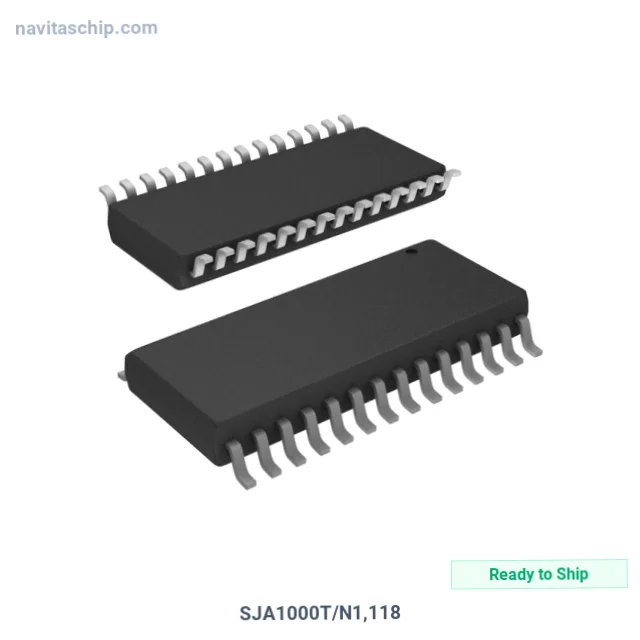

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | SJA1000T/N1,118 |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-735737 |
| Description | IC STAND-ALONE CAN CTRLR 28-SOIC |
| Spec | 28-SOIC (0.295", 7.50mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | NXP USA Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Protocol | CANbus |
| Function | Controller |
| Interface | Parallel |
| Standards | CAN 2.0 |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Supply | 15mA |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 28-SO |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. SJA1000T/N1,118 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The SJA1000T/N1,118 is an Interface Controller IC manufactured by NXP USA Inc. (NXP). Integrated Circuit Stand-Alone CAN Bus Ctrlr in 28-Pin SOIC Package, housed in a compact 28-SO package, with 4.5V ~ 5.5V supply voltage.
Key Technical Specifications
- Supply Voltage: 4.5V ~ 5.5V
- Interface: Parallel
- Operating Temperature: -40°C ~ 125°C
- Package: 28-SOIC (0.295", 7.50mm Width)
- Device Package: 28-SO
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
