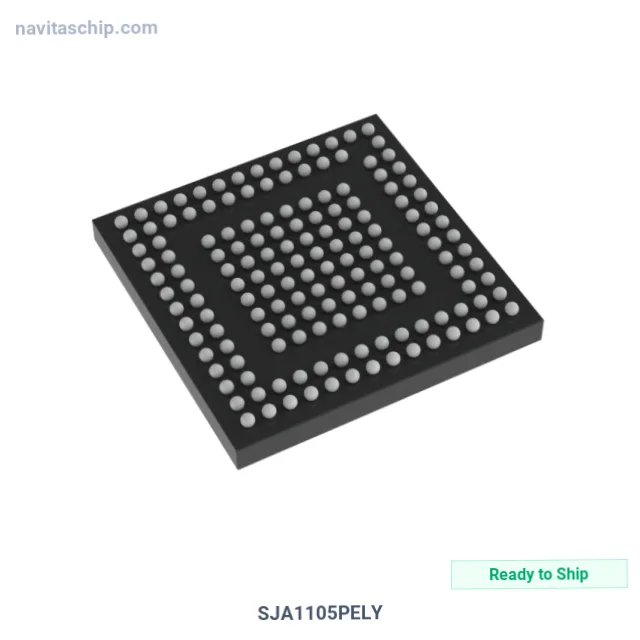

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | SJA1105PELY |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-8344066 |
| Description | IC ETHERNET SWITCH SPI 159LFBGA |
| Spec | 159-LFBGA |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | NXP USA Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Protocol | Ethernet |
| Function | Switch |
| Interface | SPI |
| Standards | IEEE 802.3 |
| Voltage - Supply | 1.65V ~ 3.6V |
| Current - Supply | 3.5mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Supplier Device Package | 159-LFBGA (12x12) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. SJA1105PELY Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The SJA1105PELY is an Interface Controller IC manufactured by NXP USA Inc. (NXP). Integrated Circuit Ethernet Switch SPI in 159-Pin BGA Package, housed in a compact 159-LFBGA (12x12) package, with 1.65V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.65V ~ 3.6V
- Interface: SPI
- Operating Temperature: -40°C ~ 125°C (TJ)
- Package: 159-LFBGA
- Device Package: 159-LFBGA (12x12)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
