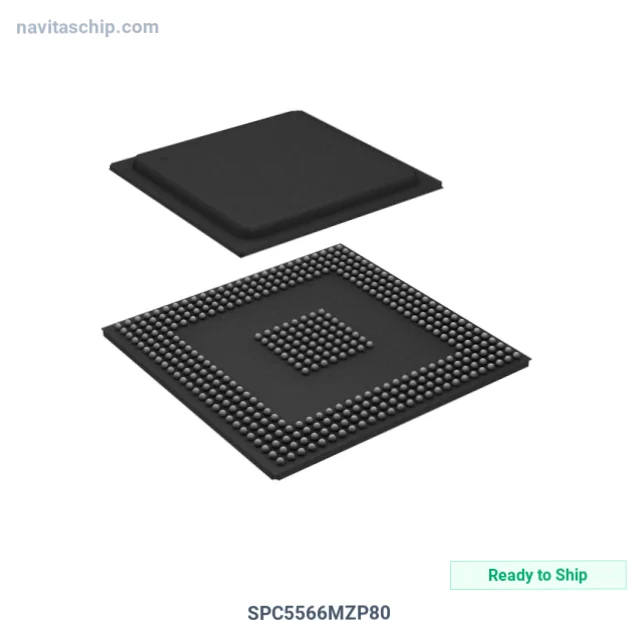

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | SPC5566MZP80 |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-7647568 |
| Description | IC MCU 32BIT 3MB FLASH 416PBGA |
| Spec | 416-BBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Tray |
| Product Status | Active |
| Core Processor | e200z6 |
| Core Size | 32-Bit |
| Speed | 80MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 256 |
| Program Memory Size | 3MB (3M x 8) |
| Program Memory Type | FLASH |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.35V ~ 1.65V |
| Data Converters | A/D 40x12b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 416-PBGA (27x27) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. SPC5566MZP80 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The SPC5566MZP80 is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 32bit 3mb Flash Memory in 416-Pin BGA Package, housed in a compact 416-PBGA (27x27) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 416-BBGA
- Device Package: 416-PBGA (27x27)
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
