SPC5646CCF0VMJ1R NXP USA Inc.

IC MCU 32BIT 3MB FLASH 256MAPBGA

In stock: 1,832 pcs · Price on request (RFQ)

In Stock RoHS

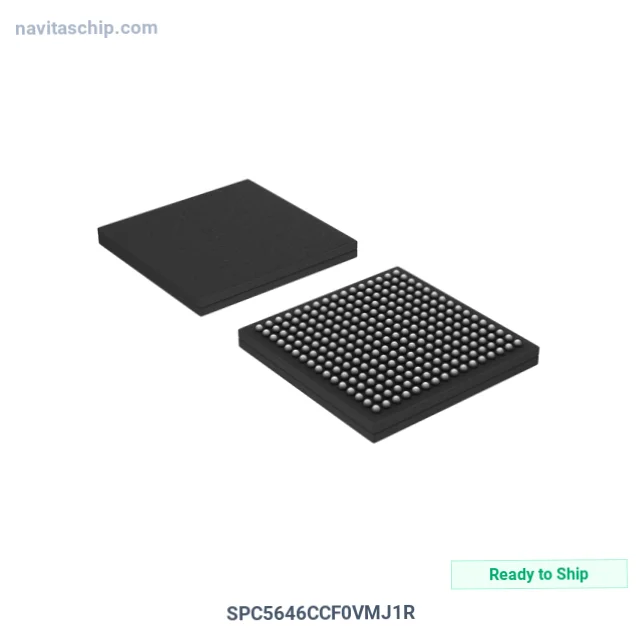

SPC5646CCF0VMJ1R

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.

Manufacturer Product Number SPC5646CCF0VMJ1R
Manufacturer NXP USA Inc.
NavitasChip Part Number N96120909
Description IC MCU 32BIT 3MB FLASH 256MAPBGA
Spec 256-LBGA
Package Tape & Reel (TR)
Datasheet Datasheet

Product Attributes

Type Description
Category Microcontrollers
Manufacturer NXP USA Inc.
Package Tape & Reel (TR)
Product Status Active
Core Processor e200z4d, e200z0h
Core Size 32-Bit Dual-Core
Speed 80MHz/120MHz
Connectivity CANbus, Ethernet, I2C, LINbus, SCI, SPI
Peripherals DMA, POR, PWM, WDT
Number of I/O 199
Program Memory Size 3MB (3M x 8)
Program Memory Type FLASH
EEPROM Size 64K x 8
RAM Size 256K x 8
Voltage - Supply (Vcc/Vdd) 3V ~ 5.5V
Data Converters A/D 33x10b, 10x12b
Oscillator Type Internal
Operating Temperature -40°C ~ 105°C (TA)
Mounting Type Surface Mount
Supplier Device Package 256-MAPBGA (17x17)

Documents & Media

Resource Type Link
Datasheet NXP USA Inc. SPC5646CCF0VMJ1R Datasheet
Product Image View Large Image

Environmental Compliance

Attribute Description
RoHS Status RoHS Compliant
REACH Status REACH Unaffected

Product Description

The SPC5646CCF0VMJ1R is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 32bit 3mb Flash Memory in 256-Pin BGA Package, housed in a compact 256-MAPBGA (17x17) package.

Key Technical Specifications

  • Operating Temperature: -40°C ~ 105°C (TA)
  • Mounting: Surface Mount
  • Package: 256-LBGA
  • Device Package: 256-MAPBGA (17x17)
  • RoHS Compliant

Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.

Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.

Spot Buy Note

Stock quantities change frequently. For large orders (1,000+ units), please contact us to verify stock and get custom pricing.

Ordering variants of SPC5646CCF0VMJ1R

Same device in different packaging or grades (temperature, speed, accuracy).
