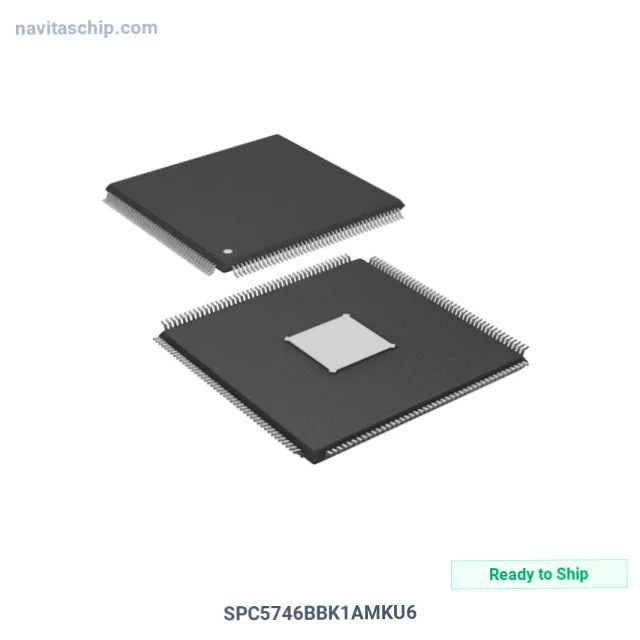

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | SPC5746BBK1AMKU6 |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-10815340 |
| Description | IC MCU 32BIT 3MB FLASH 176LQFP |
| Spec | 176-LQFP Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Tray |
| Product Status | Active |
| Core Processor | e200z4 |
| Core Size | 32-Bit |
| Speed | 160MHz |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SAI, SPI, USB, USB OTG |
| Peripherals | DMA, LVD, POR, WDT |
| Number of I/O | 129 |
| Program Memory Size | 3MB (3M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| RAM Size | 384K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3.15V ~ 5.5V |
| Data Converters | A/D 36x10b, 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-LQFP (24x24) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. SPC5746BBK1AMKU6 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The SPC5746BBK1AMKU6 is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 32bit 3mb Flash Memory in 176-Pin LQFP Package, housed in a compact 176-LQFP (24x24) package.
Don't let long factory lead times slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 176-LQFP Exposed Pad
- Device Package: 176-LQFP (24x24)
- RoHS Compliant
Applications
Designed for:
- embedded systems
- IoT devices
- professional equipment
Why Choose NavitasChip for SPC5746BBK1AMKU6?
NavitasChip offers obsolete part procurement when authorized distributors discontinue support for the SPC5746BBK1AMKU6 and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
We offer express global shipping for SPC5746BBK1AMKU6, serving customers in Norway, Sweden, and worldwide.
SPC5746BBK1AMKU6 - Inquire for bulk discount.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
