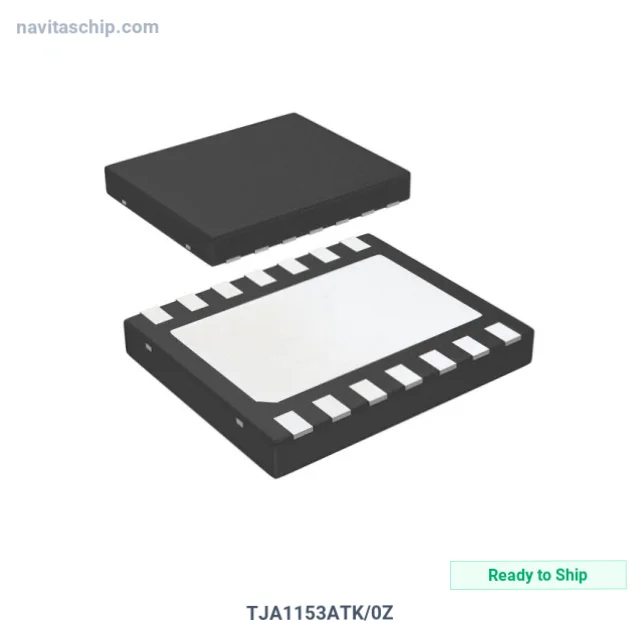

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TJA1153ATK/0Z |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-16162630 |
| Description | IC TRANSCEIVER 1/1 14HVSON |
| Spec | 14-VDFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | NXP USA Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Transceiver |
| Protocol | CANbus |
| Number of Drivers/Receivers | 1/1 |
| Data Rate | 5Mbps |
| Voltage - Supply | 4.75V ~ 5.25V |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-HVSON (3x4.5) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. TJA1153ATK/0Z Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TJA1153ATK/0Z is an Interface Driver Receiver Transceiver IC manufactured by NXP USA Inc. (NXP). Integrated Circuit Transceiver 1/1 14hvson, housed in a compact 14-HVSON (3x4.5) package, with 4.75V ~ 5.25V supply voltage.
Facing hard-to-find LVDS and Ethernet PHY transceivers with original date codes and traceability? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Supply Voltage: 4.75V ~ 5.25V
- Mounting: Surface Mount
- Package: 14-VDFN Exposed Pad
- Device Package: 14-HVSON (3x4.5)
- RoHS Compliant
Applications
Critical part of:
- embedded systems
- industrial fieldbus and process control communication networks
- CAN and LIN transceivers for distributed control systems
- LVDS and high-speed serial drivers for backplane and inter-board links
Why Choose NavitasChip for TJA1153ATK/0Z?
NavitasChip offers global surplus sourcing network for the TJA1153ATK/0Z and thousands of other electronic components.
- Availability: Same-day Shipping Options
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Ships from Hong Kong, Singapore, or Shenzhen based on destination requirements.
TJA1153ATK/0Z - Contact our sales team.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
