Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | onsemi |
| Package | Tube |
| Product Status | Obsolete |
| Function | Step-Up |
| Output Configuration | Negative |
| Topology | Buck, Boost, Flyback, Forward Converter, SEPIC |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.7V |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | -2.45V |
| Voltage - Output (Max) | -40V (Switch) |
| Current - Output | 1.5A (Switch) |
| Frequency - Switching | 280kHz |
| Synchronous Rectifier | No |
| Operating Temperature | 0°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | onsemi CS5172GD8G Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description

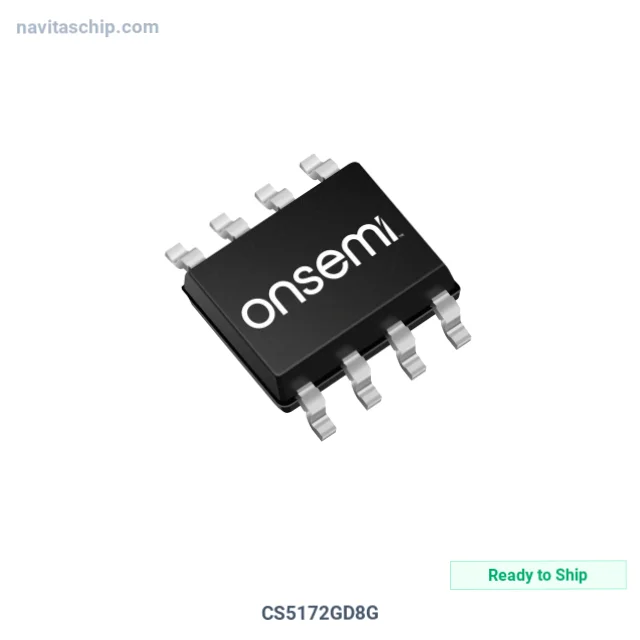

The CS5172GD8G is a DC-DC Switching Voltage Regulator manufactured by onsemi. Integrated Circuit Regulator Buck Boost Adjustable 1.5a in 8-Pin SOIC Package, housed in a compact 8-SOIC package.
Key Technical Specifications
- Output Type: Adjustable
- Operating Temperature: 0°C ~ 125°C (TJ)
- Mounting: Surface Mount
- Package: 8-SOIC (0.154", 3.90mm Width)
- Device Package: 8-SOIC
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
