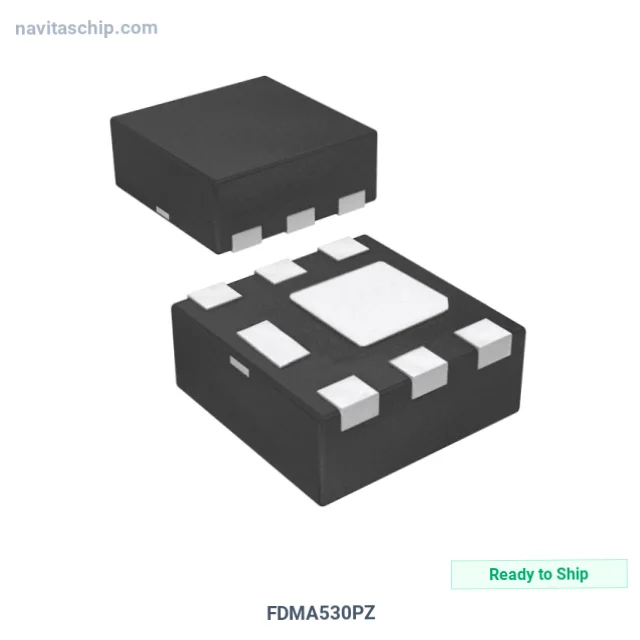

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | onsemi |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 6.8A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 35mOhm @ 6.8A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 24 nC @ 10 V |
| Vgs (Max) | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 1070 pF @ 15 V |
| Power Dissipation (Max) | 2.4W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-MicroFET (2x2) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | onsemi FDMA530PZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The FDMA530PZ is a Transistor manufactured by onsemi. MOSFET P-Channel 30V Breakdown 6.8a Current 6microfet, housed in a compact 6-MicroFET (2x2) package. Originally developed by Fairchild Semiconductor, this component continues to be fully supported.
Struggling with MOSFET allocation constraints? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting: Surface Mount
- Package: 6-WDFN Exposed Pad
- Device Package: 6-MicroFET (2x2)
- RoHS Compliant
Applications
Designed for:
- motor control
- LED drivers
- switching
