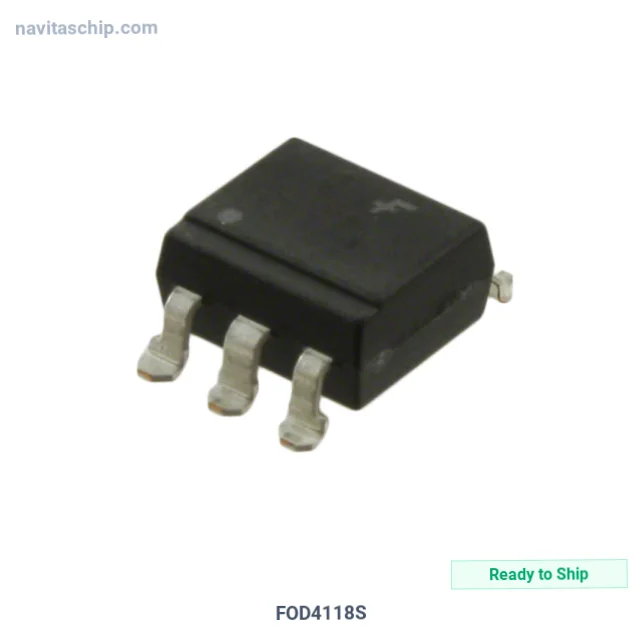

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Triac, SCR Output Optoisolators |
| Manufacturer | onsemi |
| Package | Tube |
| Product Status | Active |
| Output Type | Triac |
| Zero Crossing Circuit | Yes |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Voltage - Off State | 800 V |
| Static dV/dt (Min) | 10kV/µs |
| Current - LED Trigger (Ift) (Max) | 1.3mA |
| Current - Hold (Ih) | 500µA |
| Turn On Time | 60µs |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Current - DC Forward (If) (Max) | 30 mA |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-SMD |
| Approval Agency | CSA, UL |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | onsemi FOD4118S Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The FOD4118S is an Optocoupler manufactured by onsemi. Optocoupler Isolator 5kV Triac 1ch 6-Surface Mount, housed in a compact 6-SMD package.
Facing excess inventory tying up working capital? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Output Type: Triac
- Channels: 1
- Operating Temperature: -55°C ~ 100°C
- Mounting: Surface Mount
- Package: 6-SMD, Gull Wing
- Device Package: 6-SMD
- RoHS Compliant
Applications
Essential component for:
- industrial control
- isolation feedback
- signal isolation
Why Choose NavitasChip for FOD4118S?
NavitasChip offers cost-effective alternative to authorized distributors for the FOD4118S and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
As an independent distributor, we offer FOD4118S with flexible routing options.
FOD4118S - Contact our sales team.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
