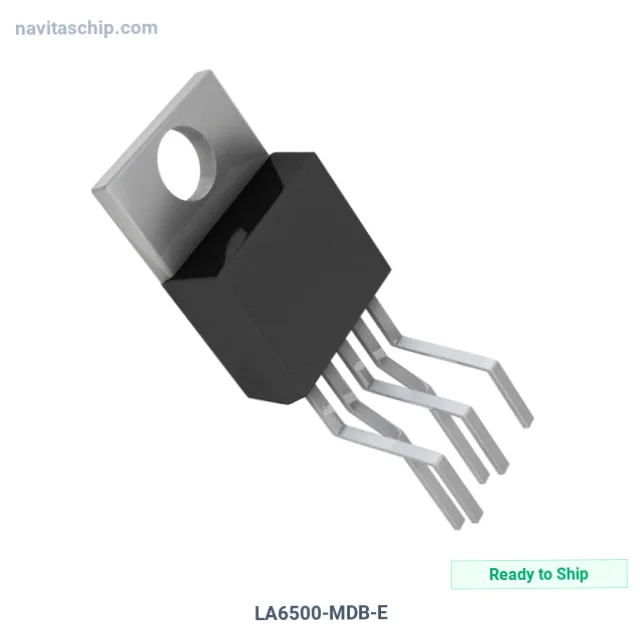

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LA6500-MDB-E |
| Manufacturer | onsemi |
| NavitasChip Part Number | NAVI-5258430 |
| Description | IC POWER 1 CIRCUIT TO220-5H |
| Spec | TO-220-5 Formed Leads |
| Package | Bulk |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | onsemi |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Bulk |
| Product Status | Obsolete |
| Amplifier Type | Power |
| Number of Circuits | 1 |
| Slew Rate | 0.15V/µs |
| Current - Input Bias | 100 nA |
| Voltage - Input Offset | 2 mV |
| Current - Supply | 6mA |
| Current - Output / Channel | 1 A |
| Voltage - Supply Span (Min) | 30 V |
| Voltage - Supply Span (Max) | 30 V |
| Operating Temperature | -20°C ~ 75°C |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220-5H |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LA6500-MDB-E is an Operational Amplifier (Op Amp) manufactured by onsemi. Integrated Circuit Power 1 Circuit in 0-Pin To22 Package-5h, housed in a compact TO-220-5H package.
Key Technical Specifications
- Operating Temperature: -20°C ~ 75°C
- Mounting: Through Hole
- Package: TO-220-5 Formed Leads
- Device Package: TO-220-5H
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
