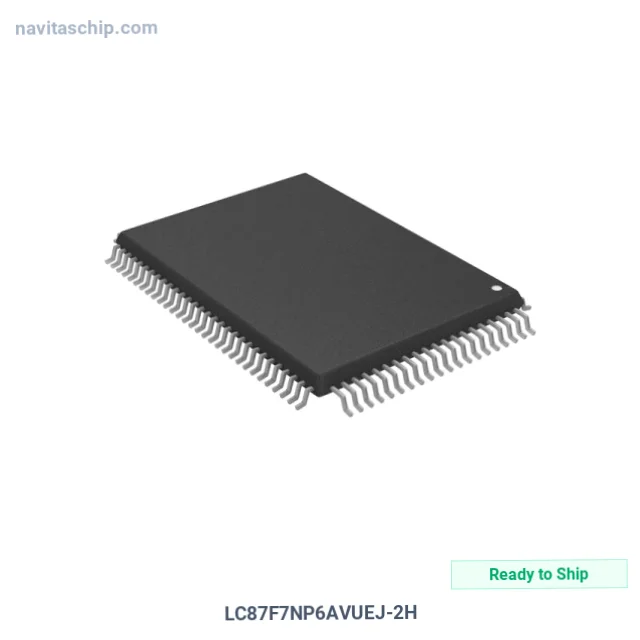

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | onsemi |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Bulk |
| Product Status | Obsolete |
| Core Size | 8-Bit |
| Speed | 18MHz |
| Connectivity | SIO, UART/USART |
| Peripherals | LCD, PWM, WDT |
| Number of I/O | 29 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.5V ~ 3.6V |
| Data Converters | A/D 15x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-PQFP/QIP (20x14) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | onsemi LC87F7NP6AVUEJ-2H Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LC87F7NP6AVUEJ-2H is a Microcontroller (MCU) manufactured by onsemi. Integrated Circuit Microcontroller 8bit 256kb Flash Memory 100pqfp, housed in a compact 100-PQFP/QIP (20x14) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 100-BQFP
- Device Package: 100-PQFP/QIP (20x14)
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
