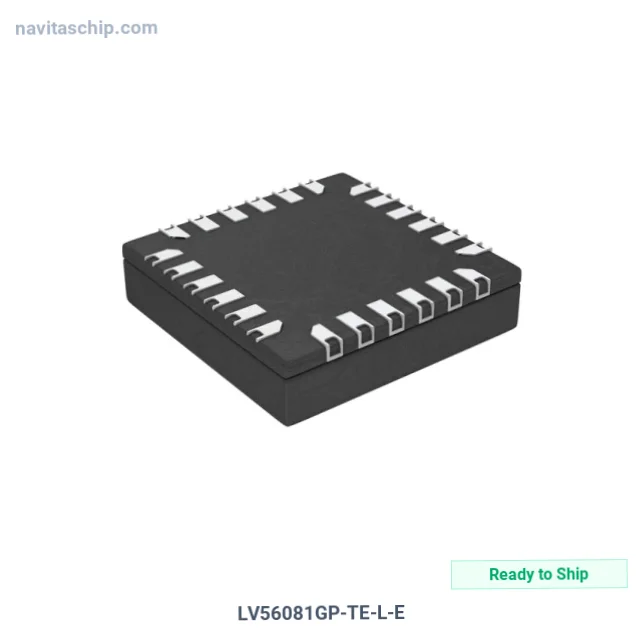

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LV56081GP-TE-L-E |
| Manufacturer | onsemi |
| NavitasChip Part Number | NAVI-5257114 |
| Description | IC REG CHG PUMP -5.5V DL 24VCT |
| Spec | 24-WFQFN |
| Package | Tape & Reel (TR) |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | onsemi |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Function | Ratiometric |
| Output Configuration | Positive and Negative |
| Topology | Charge Pump |
| Output Type | Fixed |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 3.45V |
| Voltage - Output (Min/Fixed) | -5.5V, 15V |
| Current - Output | 20mA |
| Frequency - Switching | 2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -20°C ~ 80°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-VCT (3.5x3.5) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LV56081GP-TE-L-E is a DC-DC Switching Voltage Regulator manufactured by onsemi. Integrated Circuit Regulator Chg Pump -5.5V Supply Dual 24vct, housed in a compact 24-VCT (3.5x3.5) package.
Key Technical Specifications
- Output Type: Fixed
- Operating Temperature: -20°C ~ 80°C
- Mounting: Surface Mount
- Package: 24-WFQFN
- Device Package: 24-VCT (3.5x3.5)
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
