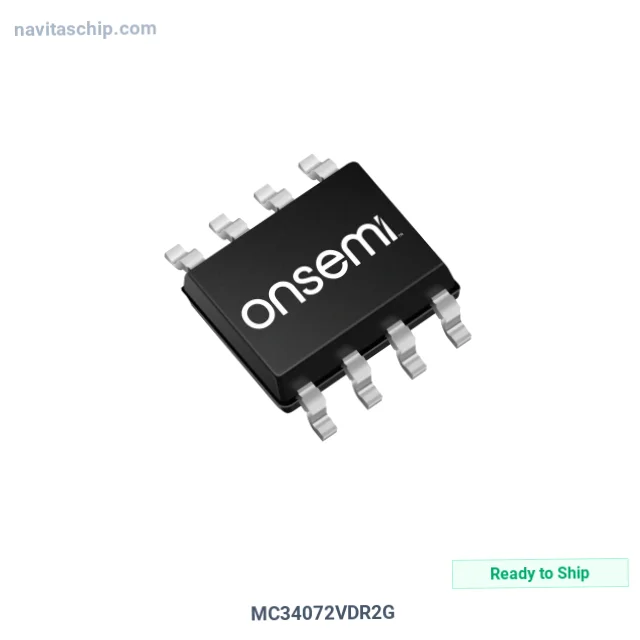

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | onsemi |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 2 |
| Output Type | Single-Ended |
| Slew Rate | 13V/µs |
| Gain Bandwidth Product | 4.5 MHz |
| Current - Input Bias | 100 nA |
| Voltage - Input Offset | 1 mV |
| Current - Supply | 1.9mA (x2 Channels) |
| Current - Output / Channel | 30 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 44 V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | onsemi MC34072VDR2G Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MC34072VDR2G is an Operational Amplifier (Op Amp) manufactured by onsemi. Integrated Circuit Operational Amplifier Gp 2 Circuit in 8-Pin SOIC Package, housed in a compact 8-SOIC package.
In today's market, LMC6082, LMC6042 and LMC6062 CMOS legacy op amps no longer in active production with pin-compatible part shortage can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Output Type: Single-Ended
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 8-SOIC (0.154", 3.90mm Width)
- Device Package: 8-SOIC
- RoHS Compliant
Applications
Ideal solution for:
- industrial automation
- rail-to-rail input and output (RRIO) op amp for single-supply low-voltage system designs
- zero-drift, chopper-stabilized and auto-zero op amp for ultra-low-offset precision sensing
- low-noise op amp with low input voltage and current noise for high-resolution analog front-ends
- high-side and low-side current sensing for lithium battery packs, BMS and brushless motor phase monitoring
Why Choose NavitasChip for MC34072VDR2G?
NavitasChip offers cost-saving procurement for the MC34072VDR2G and thousands of other electronic components.
- Availability: Same-day Shipping Options
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
MC34072VDR2G sourced and shipped via our Asia-Pacific distribution network.
MC34072VDR2G - Contact our sales team.
