Product Attributes
| Type | Description |
|---|---|
| Category | Special Purpose Isolators |
| Manufacturer | onsemi |
| Package | Tube |
| Product Status | Obsolete |
| Type | AC Line Monitor |
| Number of Channels | 1 |
| Voltage - Isolation | 2500Vrms |
| Input Type | AC, DC |
| Current - Output / Channel | 20mA |
| Propagation Delay tpLH / tpHL (Max) | 1ms, 1ms (Typ) |
| Voltage - Forward (Vf) (Typ) | 1.5 V |
| Current - DC Forward (If) (Max) | 30 mA |
| Voltage - Supply | 7V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 8-DIP |
| Approval Agency | UR |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | onsemi MID400 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description

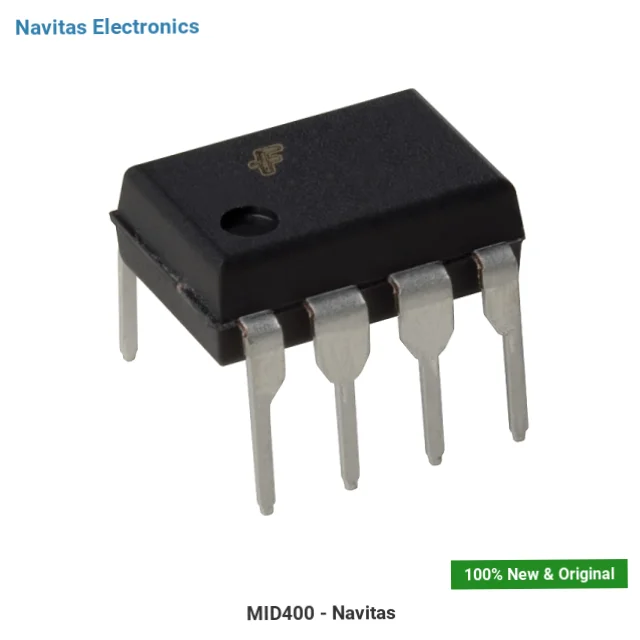

The MID400 is an Isolator manufactured by onsemi. Optocoupler Isolator 2.5kV Ac Monitor in 8-Pin DIP Package, housed in a compact 8-DIP package, with 7V supply voltage.
Struggling with isolation component lead times? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Supply Voltage: 7V
- Channels: 1
- Operating Temperature: -40°C ~ 85°C
- Mounting: Through Hole
- Package: 8-DIP (0.300", 7.62mm)
- Device Package: 8-DIP
- RoHS Compliant
Applications
Designed for:
- industrial fieldbus
- motor drives
- solar inverters
- industrial control
- galvanic isolation
Why Choose NavitasChip for MID400?
NavitasChip offers wholesale pricing advantages for the MID400 and thousands of other electronic components.
- Availability: Same-day Shipping Options
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Flexible shipping arrangements for MID400 with regional warehouse support.
MID400 - Check our competitive price now.
