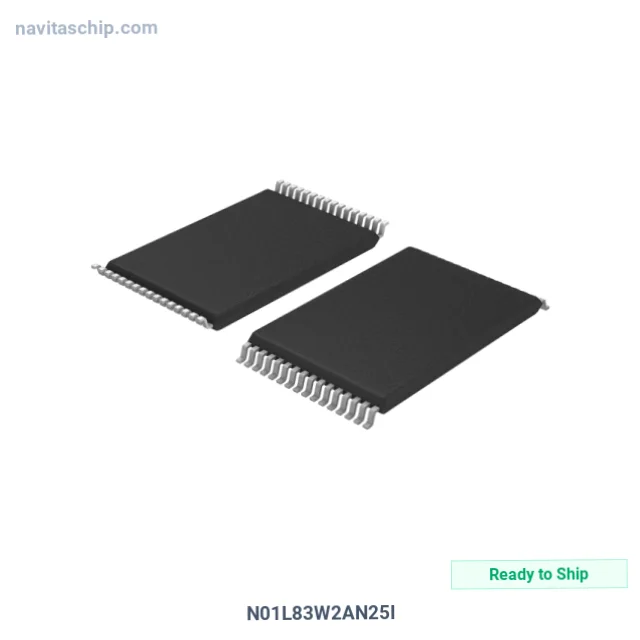

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Memory ICs |
| Manufacturer | onsemi |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tray |
| Product Status | Obsolete |
| Memory Type | Volatile |
| Memory Format | SRAM |
| Technology | SRAM - Asynchronous |
| Memory Size | 1Mbit |
| Memory Organization | 128K x 8 |
| Memory Interface | Parallel |
| Write Cycle Time - Word, Page | 55ns |
| Access Time | 55 ns |
| Voltage - Supply | 2.3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-sTSOP I |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | onsemi N01L83W2AN25I Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The N01L83W2AN25I is a Memory IC manufactured by onsemi. Integrated Circuit SRAM 1mbit Parallel 32stsop I, housed in a compact 32-sTSOP I package, with 2.3V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.3V ~ 3.6V
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 32-LFSOP (0.465", 11.80mm Width)
- Device Package: 32-sTSOP I
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
