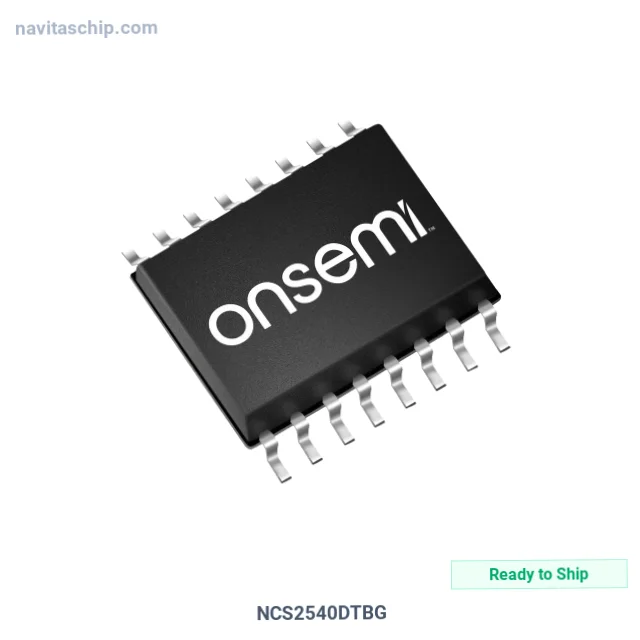

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | onsemi |
| Package | Tube |
| Product Status | Obsolete |
| Amplifier Type | Voltage Feedback |
| Number of Circuits | 3 |
| Slew Rate | 1700V/µs |
| -3db Bandwidth | 750 MHz |
| Current - Input Bias | 3.2 µA |
| Voltage - Input Offset | 10 mV |
| Current - Supply | 13mA (x3 Channels) |
| Current - Output / Channel | 100 mA |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 10 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | onsemi NCS2540DTBG Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The NCS2540DTBG is an Operational Amplifier (Op Amp) manufactured by onsemi. Integrated Circuit Operational Amplifier Vfb 3 Circuit in 16-Pin TSSOP Package, housed in a compact 16-TSSOP package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 16-TSSOP (0.173", 4.40mm Width)
- Device Package: 16-TSSOP
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
