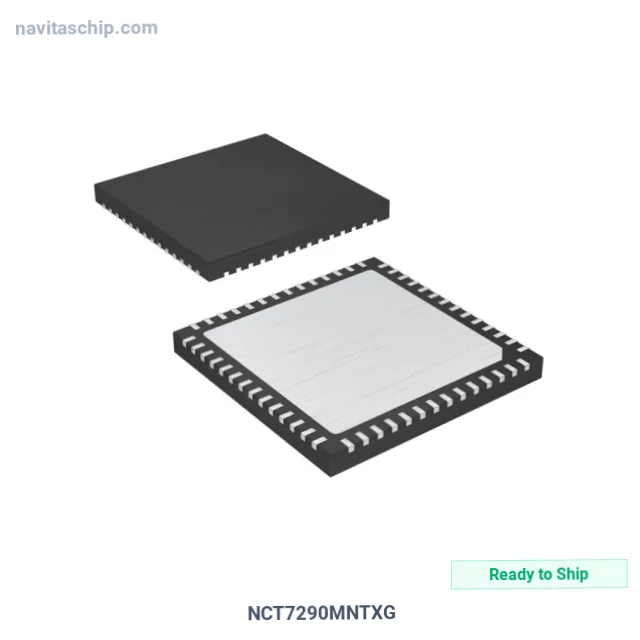

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | onsemi |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Type | ADC, DAC |
| Number of Channels | 16 |
| Resolution (Bits) | 10, 12 b |
| Data Interface | I2C, SPI |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 3V ~ 3.6V, 5V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 56-QFN (8x8) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | onsemi NCT7290MNTXG Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The NCT7290MNTXG is an Audio Codec and Special-Purpose Data Converter IC manufactured by onsemi. Integrated Circuit Analog-To-Digital Converter/digital-To-Analog Converter 10/12bit in 56-Pin QFN Package, housed in a compact 56-QFN (8x8) package, with 3V ~ 3.6V, 5V supply voltage.
Key Technical Specifications
- Supply Voltage: 3V ~ 3.6V, 5V
- Channels: 16
- Operating Temperature: -55°C ~ 125°C
- Mounting: Surface Mount
- Package: 56-VFQFN Exposed Pad
- Device Package: 56-QFN (8x8)
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
