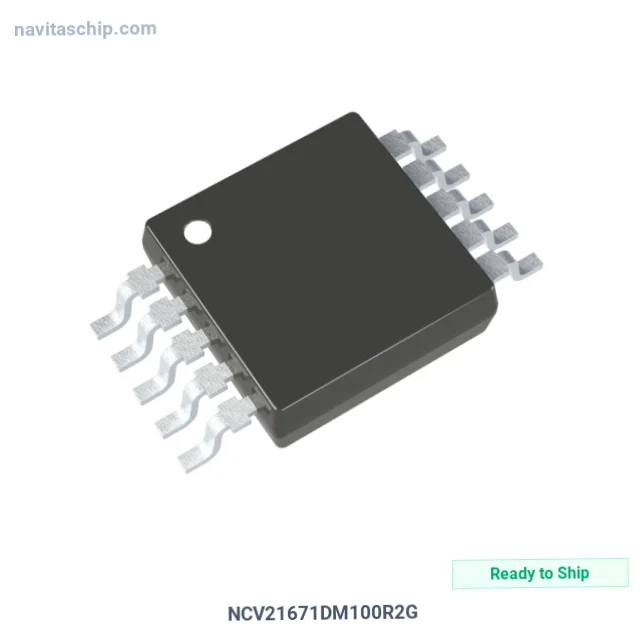

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | onsemi |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Current Sense |
| Number of Circuits | 1 |
| Output Type | Single Ended, Rail-to-Rail |
| Slew Rate | 0.3V/µs |
| -3db Bandwidth | 20 kHz |
| Current - Input Bias | 29 µA |
| Voltage - Input Offset | 1 µV |
| Current - Supply | 45µA |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 10-Micro |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | onsemi NCV21671DM100R2G Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The NCV21671DM100R2G is an Operational Amplifier (Op Amp) manufactured by onsemi. Voltage Output Current Shunt Mon, housed in a compact 10-Micro package.
Key Technical Specifications
- Output Type: Single Ended, Rail-to-Rail
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
- Device Package: 10-Micro
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
