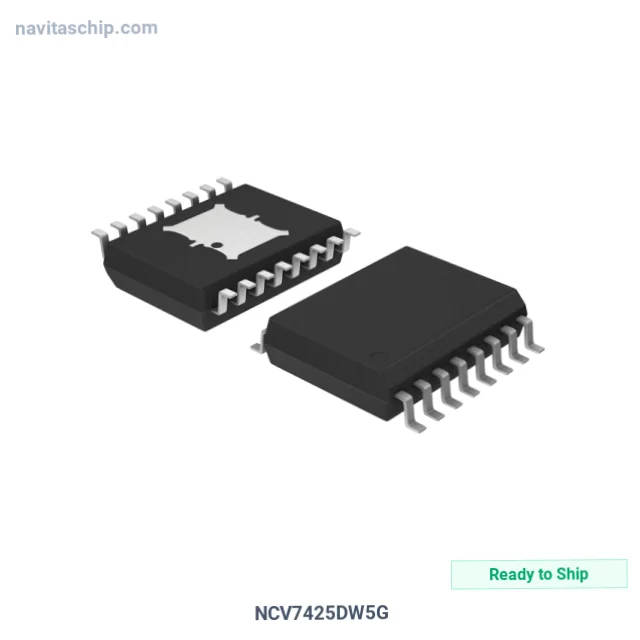

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | NCV7425DW5G |
| Manufacturer | onsemi |
| NavitasChip Part Number | NAVI-2797224 |
| Description | IC TRANSCEIVER HALF 1/1 |
| Spec | 16-SOIC (0.295", 7.50mm Width) Exposed Pad |
| Package | Tube |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | onsemi |
| Package | Tube |
| Product Status | Obsolete |
| Type | Transceiver |
| Protocol | LINbus |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Half |
| Receiver Hysteresis | 175 mV |
| Voltage - Supply | 3.3V, 5V |
| Operating Temperature | -40°C ~ 125°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The NCV7425DW5G is an Interface Driver Receiver Transceiver IC manufactured by onsemi. Integrated Circuit Transceiver Half 1/1, housed in a compact 16-SOIC (0.295", 7.50mm Width) Exposed Pad package, with 3.3V, 5V supply voltage.
Key Technical Specifications
- Supply Voltage: 3.3V, 5V
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 16-SOIC (0.295", 7.50mm Width) Exposed Pad
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
