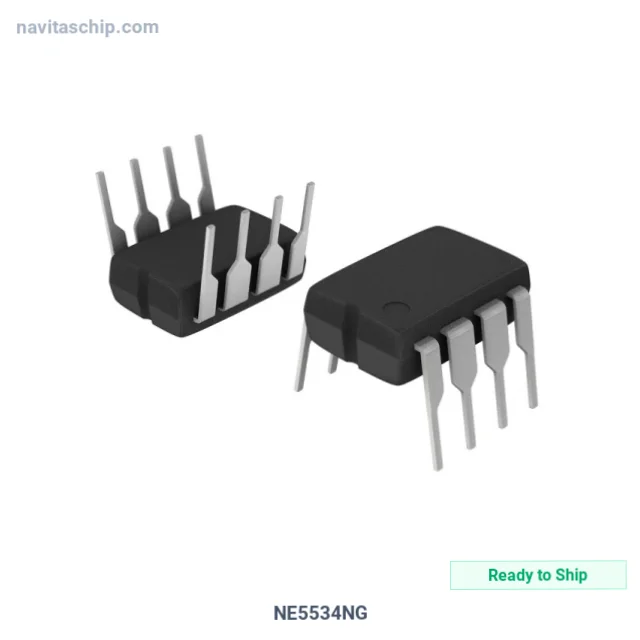

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | onsemi |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tube |
| Product Status | Obsolete |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 1 |
| Slew Rate | 13V/µs |
| Gain Bandwidth Product | 10 MHz |
| Current - Input Bias | 500 nA |
| Voltage - Input Offset | 500 µV |
| Current - Supply | 4mA |
| Current - Output / Channel | 38 mA |
| Voltage - Supply Span (Min) | 6 V |
| Voltage - Supply Span (Max) | 40 V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 8-PDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | onsemi NE5534NG Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The NE5534NG is an Operational Amplifier (Op Amp) manufactured by onsemi. Integrated Circuit Operational Amplifier General Purpose 1 Circuit in 8-Pin DIP Package, housed in a compact 8-PDIP package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 70°C
- Mounting: Through Hole
- Package: 8-DIP (0.300", 7.62mm)
- Device Package: 8-PDIP
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
