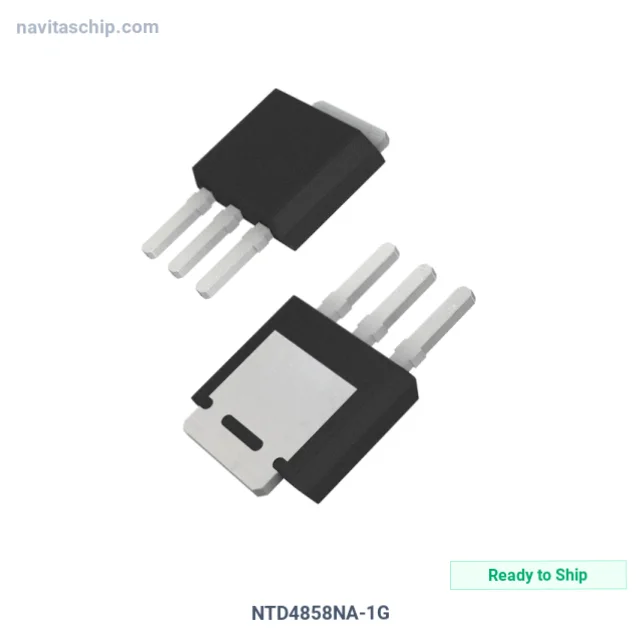

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | onsemi |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tube |
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 11.2A (Ta), 73A (Tc) |
| Rds On (Max) @ Id, Vgs | 6.2mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 19.2 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1563 pF @ 12 V |
| Power Dissipation (Max) | 1.3W (Ta), 54.5W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | IPAK |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | onsemi NTD4858NA-1G Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The NTD4858NA-1G is a Transistor manufactured by onsemi. MOSFET N-Channel 25V breakdown 11.2A current/73A current Ipak.
Key Technical Specifications
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting: Through Hole
- Package: TO-251-3 Short Leads, IPAK, TO-251AA
- Device Package: IPAK
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
