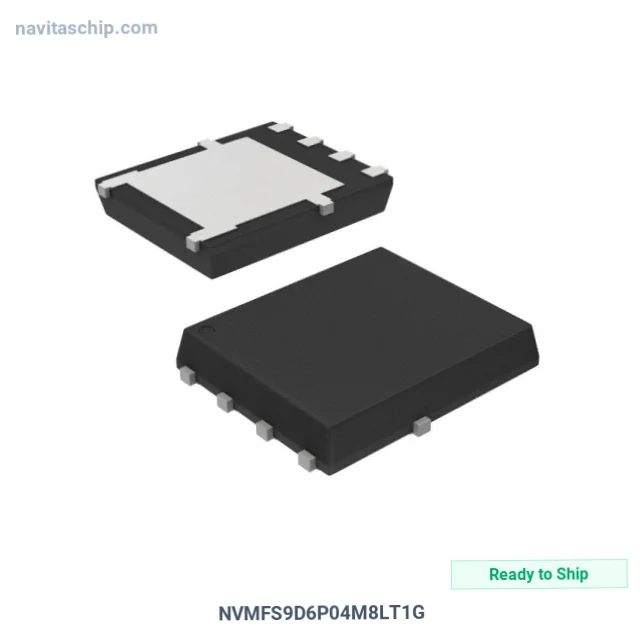

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | onsemi |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 17.1A (Ta), 77A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 9.5mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 580µA |
| Gate Charge (Qg) (Max) @ Vgs | 14.47 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2002 pF @ 20 V |
| Power Dissipation (Max) | 3.7W (Ta), 75W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 5-DFN (5x6) (8-SOFL) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | onsemi NVMFS9D6P04M8LT1G Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The NVMFS9D6P04M8LT1G is a Transistor manufactured by onsemi. Mv8 P-Channel 40V breakdown So-8fl Portfolio Ex, housed in a compact 5-DFN (5x6) (8-SOFL) package.
Key Technical Specifications
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting: Surface Mount
- Package: 8-PowerTDFN, 5 Leads
- Device Package: 5-DFN (5x6) (8-SOFL)
- RoHS Compliant
