Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | onsemi |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 11.3A (Ta), 49A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 13.8mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 420µA |
| Gate Charge (Qg) (Max) @ Vgs | 26.5 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1734 pF @ 20 V |
| Power Dissipation (Max) | 3.2W (Ta), 61W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-WDFN (3.3x3.3) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | onsemi NVTFS014P04M8LTAG Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description

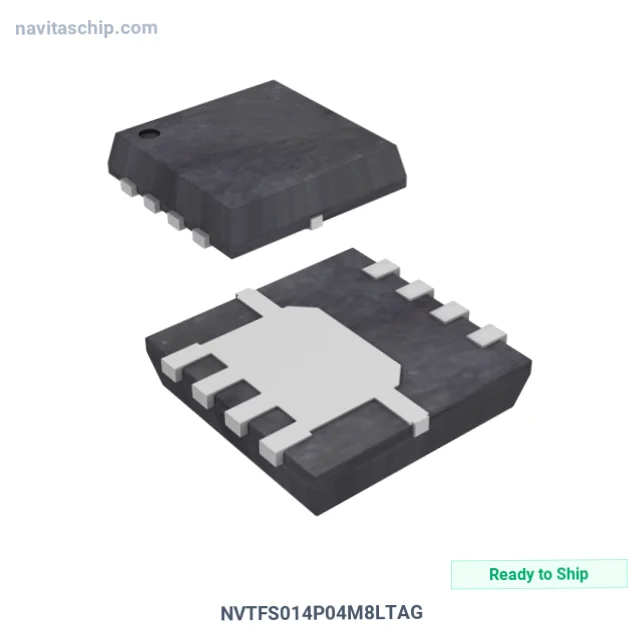

The NVTFS014P04M8LTAG is a Transistor manufactured by onsemi. MOSFET P-Channel 40V breakdown 11.3A current/49A current 8WDFN, housed in a compact 8-WDFN (3.3x3.3) package.
Key Technical Specifications
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting: Surface Mount
- Package: 8-PowerWDFN
- Device Package: 8-WDFN (3.3x3.3)
- RoHS Compliant
