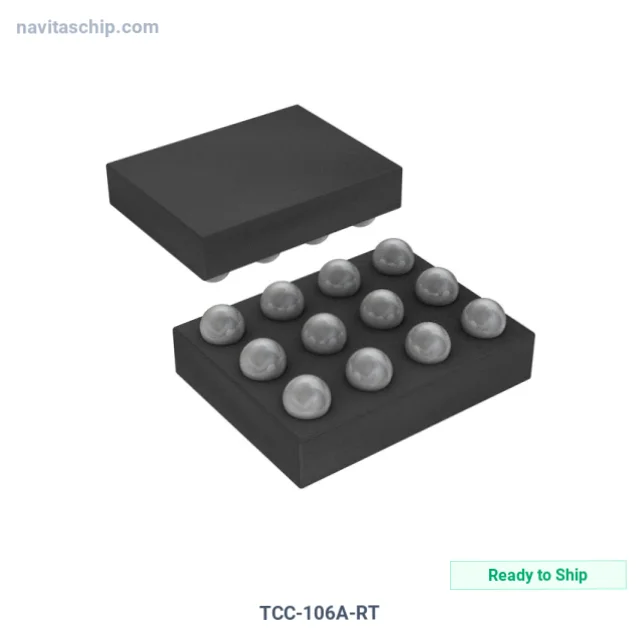

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | onsemi |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Type | DAC |
| Number of Channels | 2 |
| Resolution (Bits) | 32 b |
| Data Interface | SPI |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 1.1V ~ 5.5V |
| Operating Temperature | -30°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-WLCSP (2.58x2.23) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | onsemi TCC-106A-RT Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TCC-106A-RT is an Audio Codec and Special-Purpose Data Converter IC manufactured by onsemi. Integrated Circuit Digital-To-Analog Converter 32bit 20wlcsp, housed in a compact 20-WLCSP (2.58x2.23) package, with 1.1V ~ 5.5V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.1V ~ 5.5V
- Channels: 2
- Operating Temperature: -30°C ~ 85°C
- Mounting: Surface Mount
- Package: 20-UFBGA, WLCSP
- Device Package: 20-WLCSP (2.58x2.23)
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
