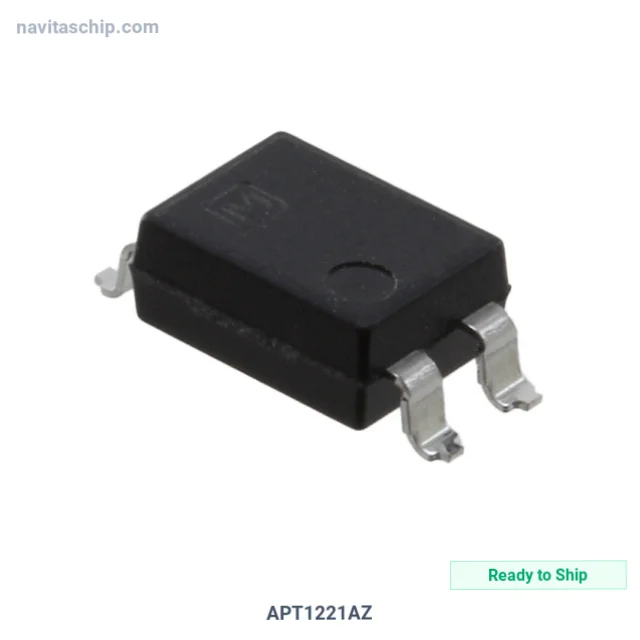

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | APT1221AZ |
| Manufacturer | Panasonic Electric Works |
| NavitasChip Part Number | NAVI-4757774 |
| Description | OPTOISOLATOR 5KV TRIAC 1CH 4-DIP |
| Spec | 4-SMD, Gull Wing |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Triac, SCR Output Optoisolators |
| Manufacturer | Panasonic Electric Works |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Voltage - Off State | 600 V |
| Static dV/dt (Min) | 500V/µs |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - On State (It (RMS)) (Max) | 100 mA |
| Current - Hold (Ih) | 3.5mA |
| Turn On Time | 100µs (Max) |
| Voltage - Forward (Vf) (Typ) | 1.21V |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 4-DIP Gull Wing |
| Approval Agency | cUR, VDE |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Panasonic Electric Works APT1221AZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The APT1221AZ is an Optocoupler manufactured by Panasonic Electric Works. Optocoupler Isolator 5kV Triac 1ch in 4-Pin DIP Package, housed in a compact 4-DIP Gull Wing package.
Don't let optocoupler lead times slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Output Type: Triac
- Channels: 1
- Operating Temperature: -40°C ~ 100°C
- Mounting: Surface Mount
- Package: 4-SMD, Gull Wing
- Device Package: 4-DIP Gull Wing
- RoHS Compliant
Applications
Essential component for:
- industrial fieldbus
- motor drives
- solar inverters
- isolation feedback
- safety isolation
Why Choose NavitasChip for APT1221AZ?
NavitasChip offers cost-effective alternative to authorized distributors for the APT1221AZ and thousands of other electronic components.
- Availability: Available Now
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
