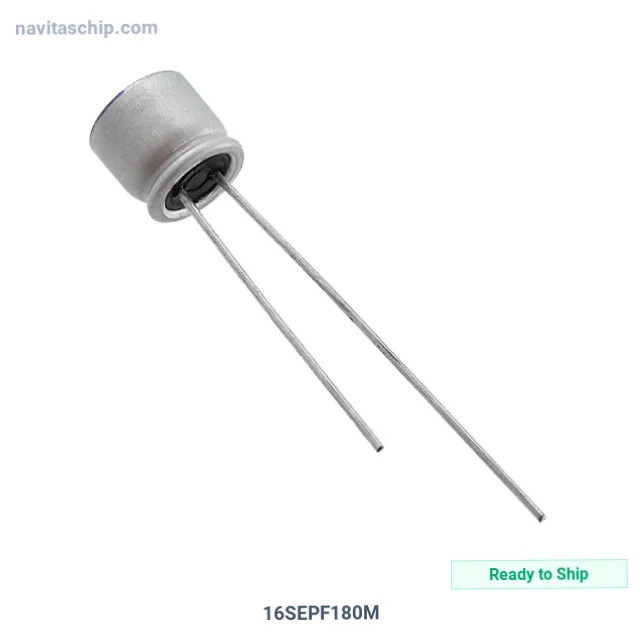

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | 16SEPF180M |
| Manufacturer | Panasonic Electronic Components |
| NavitasChip Part Number | NAVI-4204139 |
| Description | CAP ALUM POLY 180UF 20% 16V TH |
| Spec | Radial, Can |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Aluminum - Polymer Capacitors |
| Manufacturer | Panasonic Electronic Components |
| Package | Bulk |
| Product Status | Active |
| Type | Polymer |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 22mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 165 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.3 A @ 100 kHz |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Mounting Type | Through Hole |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Panasonic Electronic Components 16SEPF180M Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The 16SEPF180M is a Capacitor manufactured by Panasonic Electronic Components (Panasonic). Capacitor Aluminum Polymer 180µF with 20% tolerance rated at 16V Through-Hole, housed in a compact Radial, Can package.
Key Technical Specifications
- Operating Temperature: -55°C ~ 105°C
- Mounting: Through Hole
- Package: Radial, Can
- RoHS Compliant
