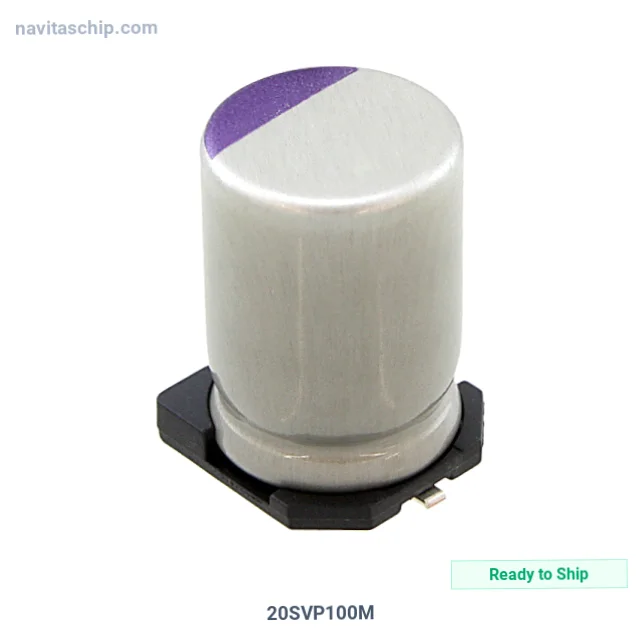

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | 20SVP100M |
| Manufacturer | Panasonic Electronic Components |
| NavitasChip Part Number | NAVI-4204821 |
| Description | CAP ALUM POLY 100UF 20% 20V SMD |
| Spec | Radial, Can - SMD |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Aluminum - Polymer Capacitors |
| Manufacturer | Panasonic Electronic Components |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Polymer |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 24mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 166 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.32 A @ 100 kHz |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Panasonic Electronic Components 20SVP100M Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The 20SVP100M is a Capacitor manufactured by Panasonic Electronic Components (Panasonic). Capacitor Aluminum Polymer 100µf 20% rated at 20V Surface Mount, housed in a compact Radial, Can - SMD package. Military temperature range (-55°C to +125°C).
Struggling with excess inventory tying up working capital? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Operating Temperature: -55°C ~ 105°C
- Mounting: Surface Mount
- Package: Radial, Can - SMD
- RoHS Compliant
Applications
Widely adopted for:
- energy storage
- motor drives
- industrial electronics
Why Choose NavitasChip for 20SVP100M?
NavitasChip offers cost-effective alternative to authorized distributors for the 20SVP100M and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
20SVP100M available for international procurement with multiple shipping origin options.
20SVP100M - Inquire for bulk discount.
