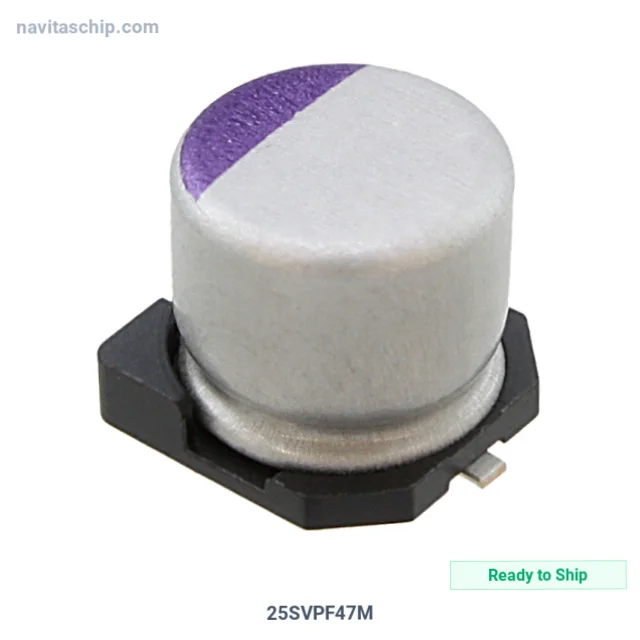

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | 25SVPF47M |
| Manufacturer | Panasonic Electronic Components |
| NavitasChip Part Number | NAVI-4204845 |
| Description | CAP ALUM POLY 47UF 20% 25V SMD |
| Spec | Radial, Can - SMD |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Aluminum - Polymer Capacitors |
| Manufacturer | Panasonic Electronic Components |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Polymer |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 30mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 140 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.8 A @ 100 kHz |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Panasonic Electronic Components 25SVPF47M Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The 25SVPF47M is a Capacitor manufactured by Panasonic Electronic Components (Panasonic). Capacitor Aluminum Polymer 47µf 20% rated at 25V Surface Mount, housed in a compact Radial, Can - SMD package. Military temperature range (-55°C to +125°C).
Don't let allocation constraints slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Operating Temperature: -55°C ~ 105°C
- Mounting: Surface Mount
- Package: Radial, Can - SMD
- RoHS Compliant
Applications
Perfect for:
- DC-DC converters
- LED lighting
- industrial electronics
- power conditioning
Why Choose NavitasChip for 25SVPF47M?
NavitasChip offers cost-effective alternative to authorized distributors for the 25SVPF47M and thousands of other electronic components.
- Availability: Same-day Shipping Options
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
We offer express global shipping for 25SVPF47M, serving customers in USA, Japan, and worldwide.
25SVPF47M - Inquire for bulk discount.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
