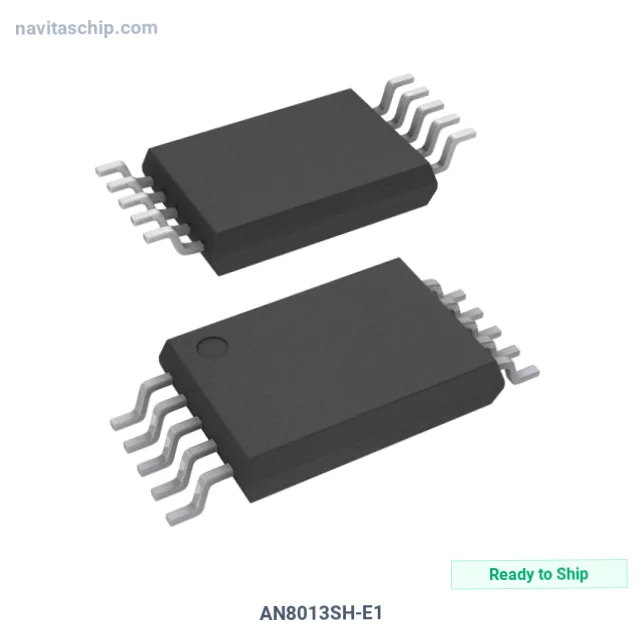

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AN8013SH-E1 |
| Manufacturer | Panasonic Electronic Components |
| NavitasChip Part Number | NAVI-440299 |
| Description | IC REG BUCK BST ADJ 50MA 10SSOP |
| Spec | 10-FSOP (0.169", 4.30mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Panasonic Electronic Components |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Function | Step-Up, Step-Down |
| Output Configuration | Positive |
| Topology | Buck, Boost |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.6V |
| Voltage - Input (Max) | 34V |
| Voltage - Output (Min/Fixed) | 3.6V |
| Voltage - Output (Max) | 34V |
| Current - Output | 50mA |
| Frequency - Switching | 20kHz ~ 500kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 10-SSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Panasonic Electronic Components AN8013SH-E1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AN8013SH-E1 is a DC-DC Switching Voltage Regulator manufactured by Panasonic Electronic Components (Panasonic). Integrated Circuit Regulator Buck Bst Adjustable 50ma in 10-Pin SSOP Package, housed in a compact 10-SSOP package.
Key Technical Specifications
- Output Type: Adjustable
- Operating Temperature: -30°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 10-FSOP (0.169", 4.30mm Width)
- Device Package: 10-SSOP
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
