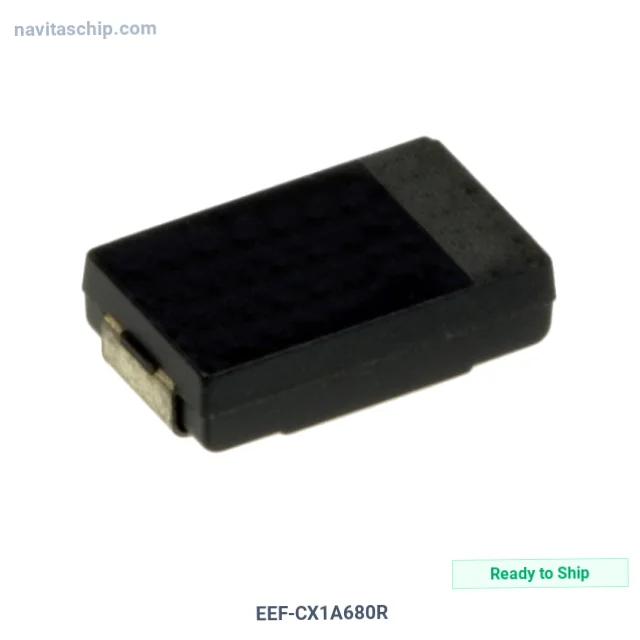

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | EEF-CX1A680R |
| Manufacturer | Panasonic Electronic Components |
| NavitasChip Part Number | NAVI-4755560 |
| Description | CAP ALUM POLY 68UF 20% 10V SMD |
| Spec | 2917 (7343 Metric) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Aluminum - Polymer Capacitors |
| Manufacturer | Panasonic Electronic Components |
| Package | Tape & Reel (TR) |
| Product Status | Not For New Designs |
| Type | Polymer |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 40mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| Ripple Current @ High Frequency | 3.2 A @ 100 kHz |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.075" (1.90mm) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Panasonic Electronic Components EEF-CX1A680R Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The EEF-CX1A680R is a Capacitor manufactured by Panasonic Electronic Components (Panasonic). Capacitor Aluminum Polymer 68µf 20% rated at 10V Surface Mount, housed in a compact 2917 (7343 Metric) package.
Don't let excess inventory tying up working capital slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Operating Temperature: -55°C ~ 105°C
- Mounting: Surface Mount
- Package: 2917 (7343 Metric)
- RoHS Compliant
Applications
Critical part of:
- DC-DC converters
- motor drives
- filtering
- decoupling
- power conditioning
