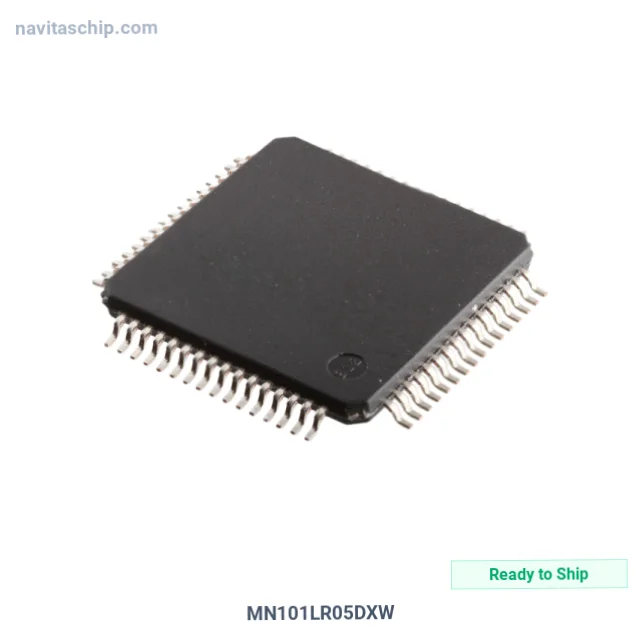

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MN101LR05DXW |
| Manufacturer | Panasonic Electronic Components |
| NavitasChip Part Number | NAVI-4771970 |
| Description | IC MCU 8BIT 64KB RERAM 80TQFP |
| Spec | 80-TQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Panasonic Electronic Components |
| Package | Tray |
| Product Status | Obsolete |
| Core Processor | AM13L |
| Core Size | 8-Bit |
| Speed | 10MHz |
| Connectivity | I2C, UART/USART |
| Peripherals | DMA, LCD, LVD, POR, PWM, WDT |
| Number of I/O | 69 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | ReRAM |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 8x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 80-TQFP (12x12) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Panasonic Electronic Components MN101LR05DXW Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MN101LR05DXW is a Microcontroller (MCU) manufactured by Panasonic Electronic Components (Panasonic). Integrated Circuit Microcontroller 8bit 64kb Reram in 80-Pin TQFP Package, housed in a compact 80-TQFP (12x12) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 80-TQFP
- Device Package: 80-TQFP (12x12)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
