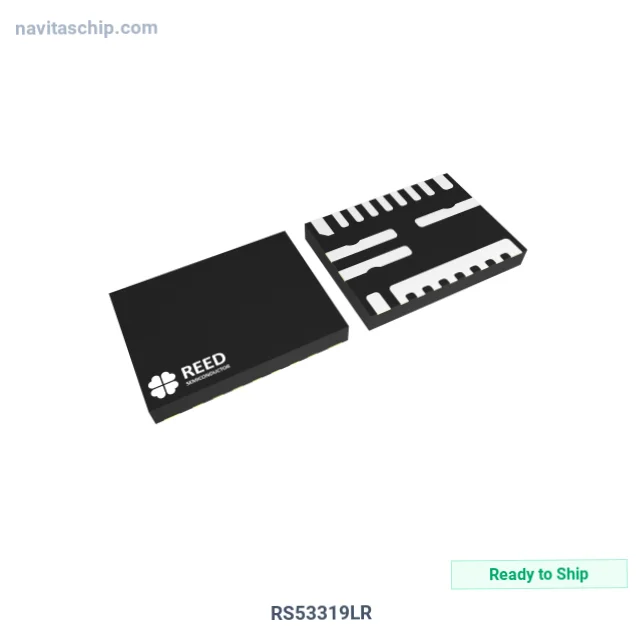

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | RS53319LR |
| Manufacturer | Reed Semiconductor Corp. |
| NavitasChip Part Number | NAVI-21853767 |
| Description | IC REG BUCK PROG 20A 21QFN |
| Spec | 21-QFN |
| Package | Cut Tape (CT) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Reed Semiconductor Corp. |
| Package | Cut Tape (CT) |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.85V |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 5.5V |
| Current - Output | 20A |
| Frequency - Switching | 600kHz, 800kHz, 1MHz ~ 2.2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 21-QFN (3x4) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Reed Semiconductor Corp. RS53319LR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The RS53319LR is a DC-DC Switching Voltage Regulator manufactured by Reed Semiconductor Corp.. Integrated Circuit Regulator Buck Programmable 20a in 21-Pin QFN Package, housed in a compact 21-QFN (3x4) package.
Key Technical Specifications
- Output Type: Adjustable
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 21-QFN
- Device Package: 21-QFN (3x4)
- RoHS Compliant
Packaging: factory Cut Tape (CT) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
