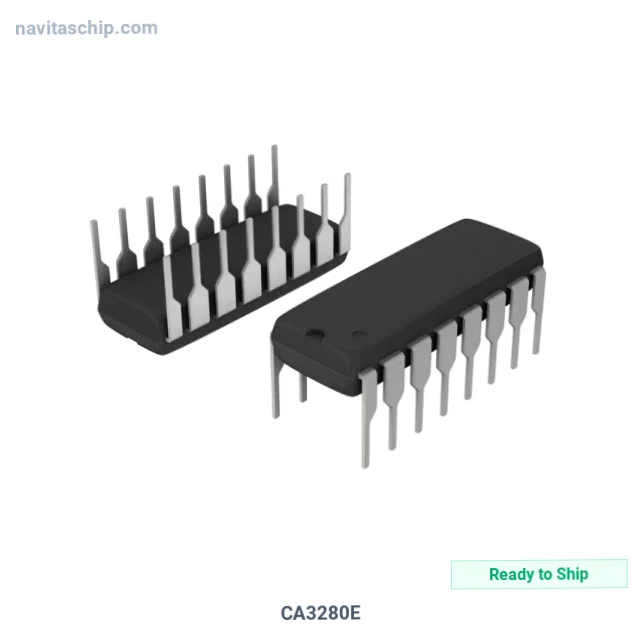

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | CA3280E |
| Manufacturer | Renesas Electronics Corporation |
| NavitasChip Part Number | NAVI-33142 |
| Description | IC OPAMP TRANSCOND 2 CIRC 16DIP |
| Spec | 16-DIP (0.300", 7.62mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Renesas Electronics Corporation |
| Package | Tube |
| Product Status | Obsolete |
| Amplifier Type | Transconductance |
| Number of Circuits | 2 |
| Slew Rate | 125V/µs |
| Gain Bandwidth Product | 9 MHz |
| Current - Input Bias | 1.8 µA |
| Voltage - Input Offset | 800 µV |
| Current - Supply | 2mA (x2 Channels) |
| Current - Output / Channel | 410 µA |
| Voltage - Supply Span (Min) | 4 V |
| Voltage - Supply Span (Max) | 30 V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 16-PDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Renesas Electronics Corporation CA3280E Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The CA3280E is an Operational Amplifier (Op Amp) manufactured by Renesas Electronics Corporation (Renesas). Integrated Circuit Operational Amplifier Transcond 2 Circ in 16-Pin DIP Package, housed in a compact 16-PDIP package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 70°C
- Mounting: Through Hole
- Package: 16-DIP (0.300", 7.62mm)
- Device Package: 16-PDIP
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
