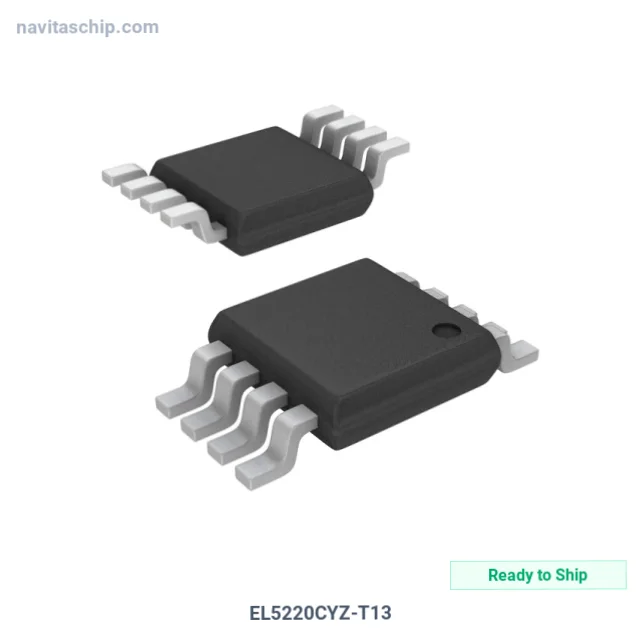

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | EL5220CYZ-T13 |
| Manufacturer | Renesas Electronics Corporation |
| NavitasChip Part Number | NAVI-1061340 |
| Description | IC VOLTAGE FEEDBACK 2 CIRC 8MSOP |
| Spec | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Renesas Electronics Corporation |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Amplifier Type | Voltage Feedback |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 10V/µs |
| Gain Bandwidth Product | 8 MHz |
| -3db Bandwidth | 12 MHz |
| Current - Input Bias | 2 nA |
| Voltage - Input Offset | 2 mV |
| Current - Supply | 500µA (x2 Channels) |
| Current - Output / Channel | 30 mA |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 16.5 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-MSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Renesas Electronics Corporation EL5220CYZ-T13 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The EL5220CYZ-T13 is an Operational Amplifier (Op Amp) manufactured by Renesas Electronics Corporation (Renesas). Integrated Circuit Voltage Feedback 2 Circ in 8-Pin MSOP Package, housed in a compact 8-MSOP package. Originally developed by Intersil, this component continues to be fully supported.
Don't let challenging Target Price (TP) requirements slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Output Type: Rail-to-Rail
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Device Package: 8-MSOP
- RoHS Compliant
Applications
Commonly utilized in:
- JFET-input and FET-input op amp for high input impedance and low bias current photometry stages
- voltage-feedback (VFA) and current-feedback (CFA) op amp architectures for closed-loop signal chains
- low-power and micro-power op amp for portable, wearable and energy-harvesting designs
- wide supply voltage operation from single 1.8 V rail to dual ±18 V industrial bus rails
